Left Front Wheel Speed Sensor Connector - C150

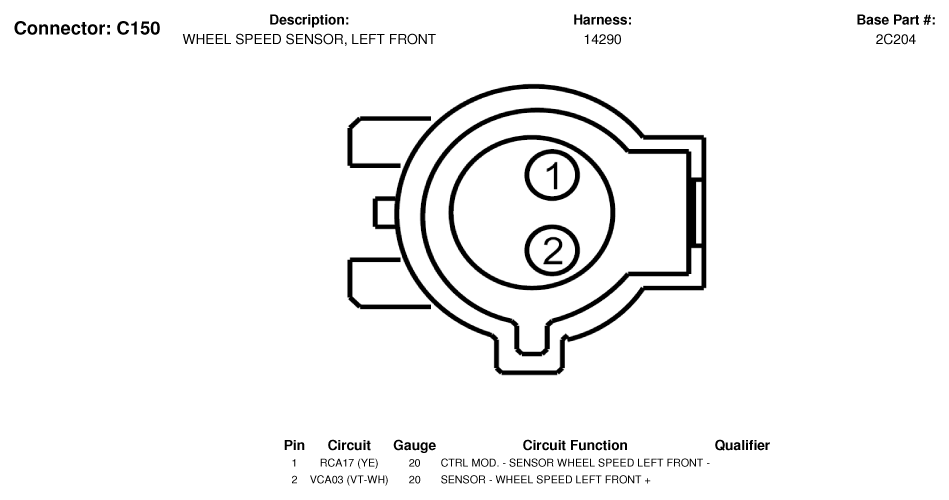

Fig 1: Left Front Wheel Speed Sensor Connector End View (C150)

G07339873

Courtesy of FORD MOTOR CO.
