Intake Air Temperature Sensor Connector - C129

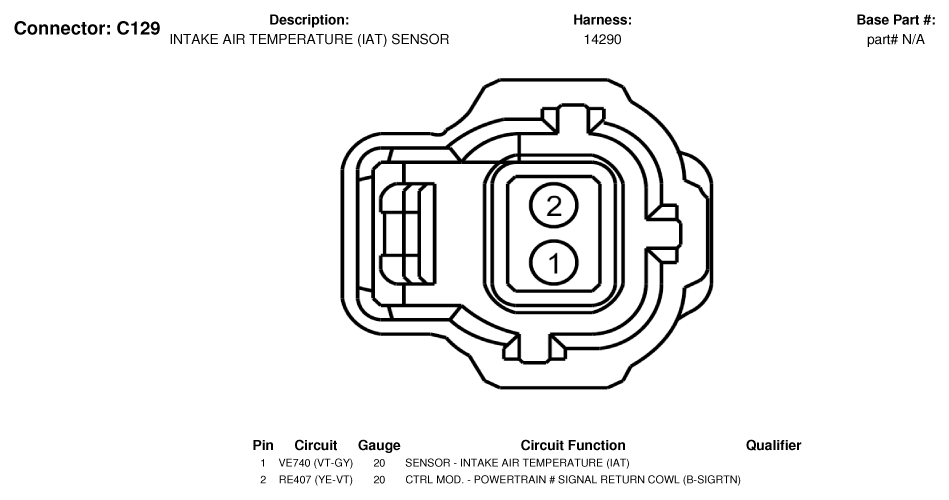

Fig 1: Intake Air Temperature Sensor Connector End View (C129)

G07339862

Courtesy of FORD MOTOR CO.
