EMTC HVAC Module Connector - C2357

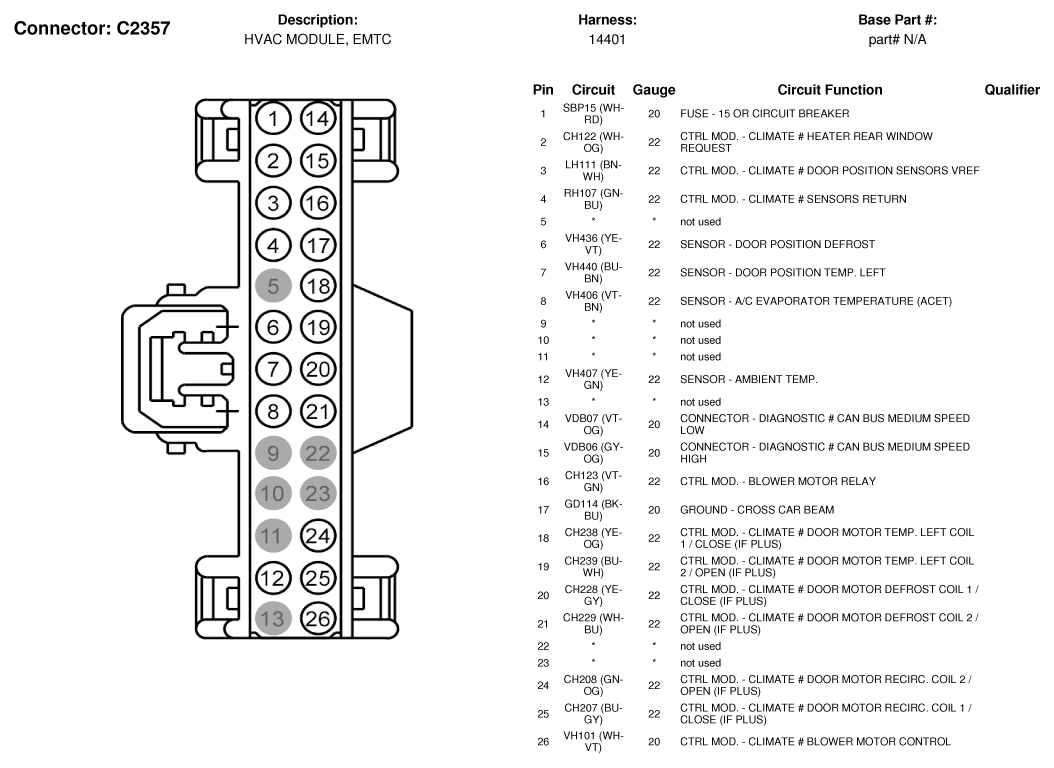

Fig 1: EMTC HVAC Module Connector End View (C2357)

G07340136

Courtesy of FORD MOTOR CO.
