Passenger Seat Occupant Classification System (OCS) Bladder System Identification

NOTE: Power seat track shown in illustration, manual similar.

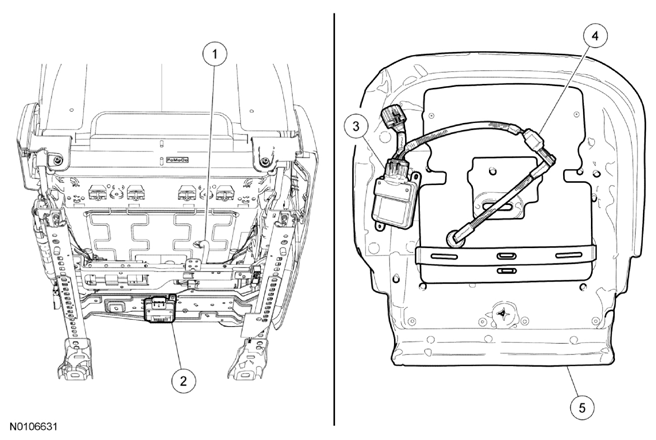

Fig 1: Identifying Components Of Passenger Seat OCS Bladder System Identification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Occupant Classification System (OCS) pressure sensor hose (all with bladder system) (part of OEM)
2	-	Disconnected OEM Occupant Classification System Module (OCSM)
3	-	OCS service kit jumper harness connector glued to the OCSM (part of 14B422)
4	-	OCS service kit jumper harness connector shrink tubed to the OCS pressure sensor (part of 14B422)
5	-	OCS service kit bladder heat staked to the cushion foam pad (part of 14B422)

1. For additional information, refer to the appropriate procedures in this service information.
