Driver Second Row Impact Sensor Connector - C3248

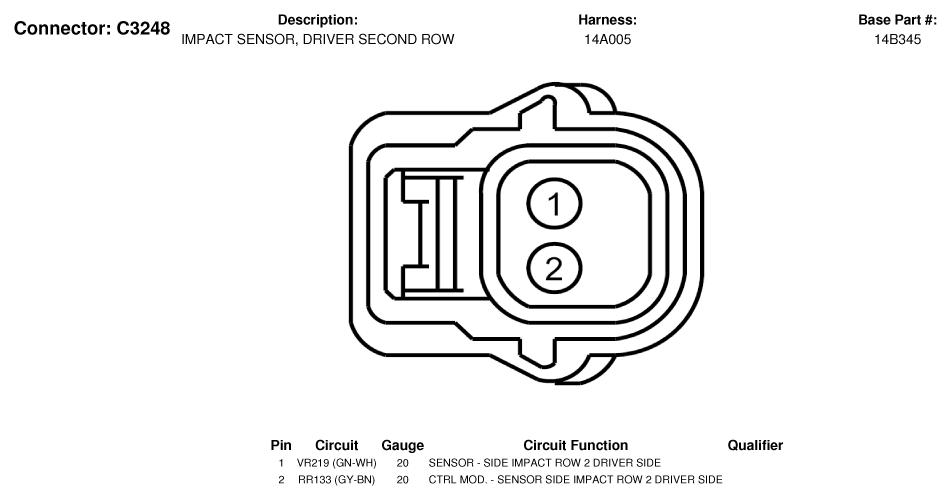

Fig 1: Driver Second Row Impact Sensor Connector End View (C3248)

G07340186

Courtesy of FORD MOTOR CO.
