Throttle Body: Notes

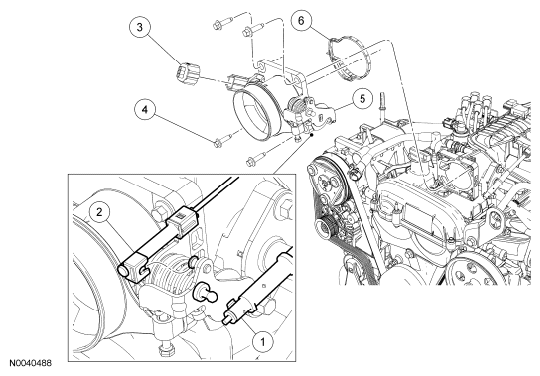

Fig 1: Exploded View Of Throttle Body

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9A758	Accelerator cable
2	9A825	Speed control cable
3	-	Throttle Position (TP) sensor electrical connector (part of 12B637)
4	W500305	TP bolt (4 required)
5	9E926	Throttle Body (TB)
6	-	TB gasket (part of 9F991)
