Right Front Wheel Speed Sensor Connector

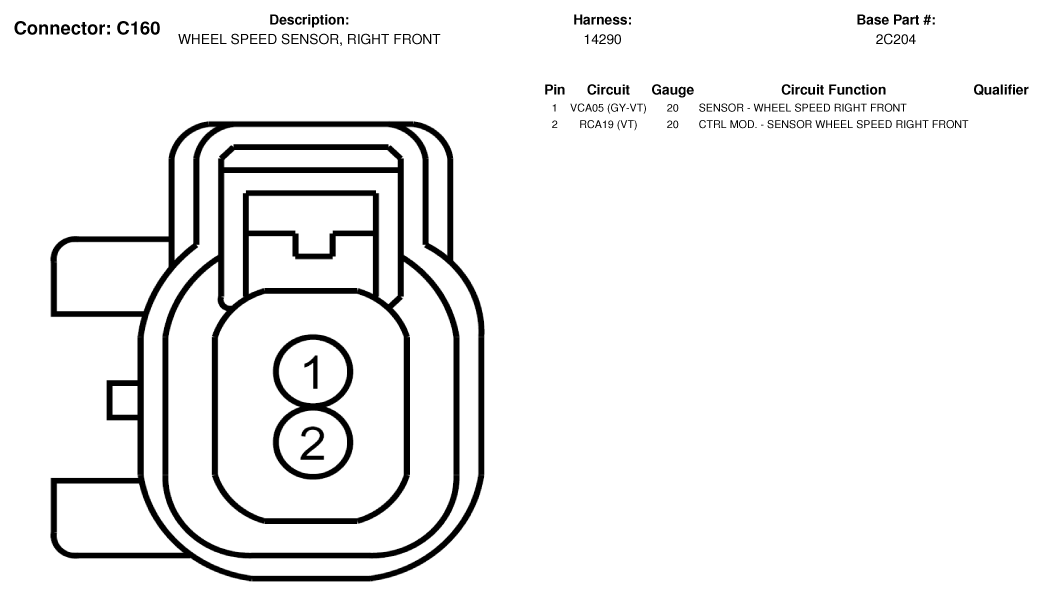

Fig 1: Right Front Wheel Speed Sensor Connector End View (C160)

G07336512

Courtesy of FORD MOTOR CO.
