Occupant Classification Sensor Connector - C3159

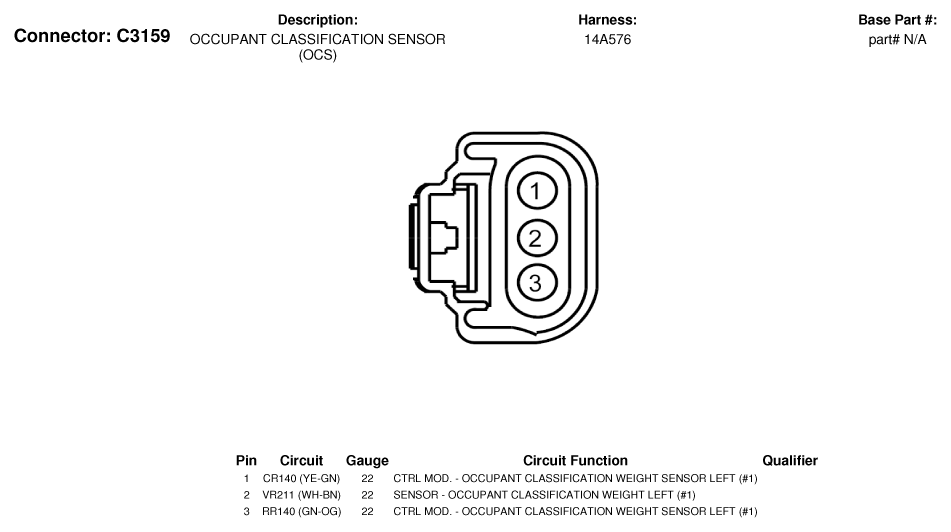

Fig 1: Occupant Classification Sensor Connector End View (C3159)

G07336767

Courtesy of FORD MOTOR CO.
