Left Front Lumbar Control Switch Connector - C361

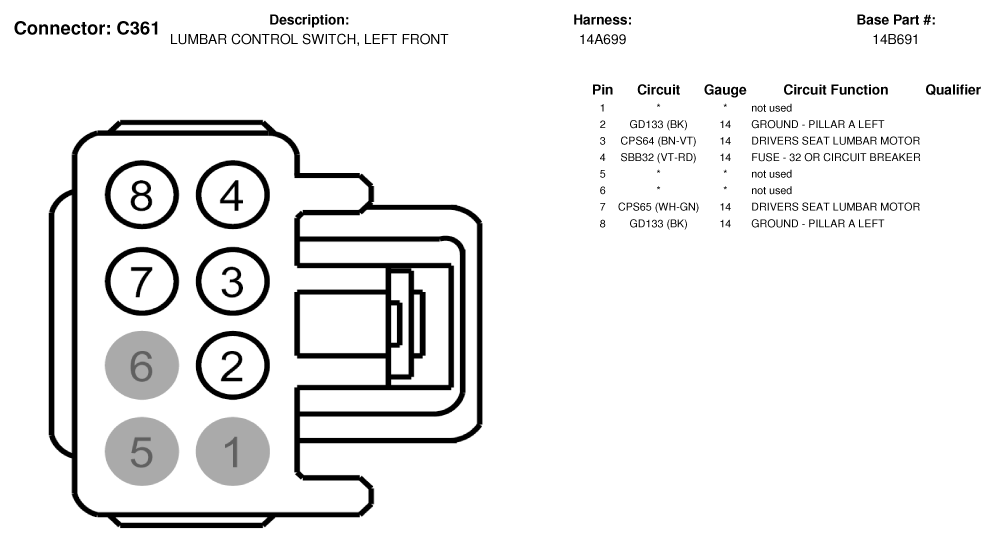

Fig 1: Left Front Lumbar Control Switch Connector End View (C361)

G07336592

Courtesy of FORD MOTOR CO.
