EGR System Module Connector - C1450
EGR System Module Connector - C1450

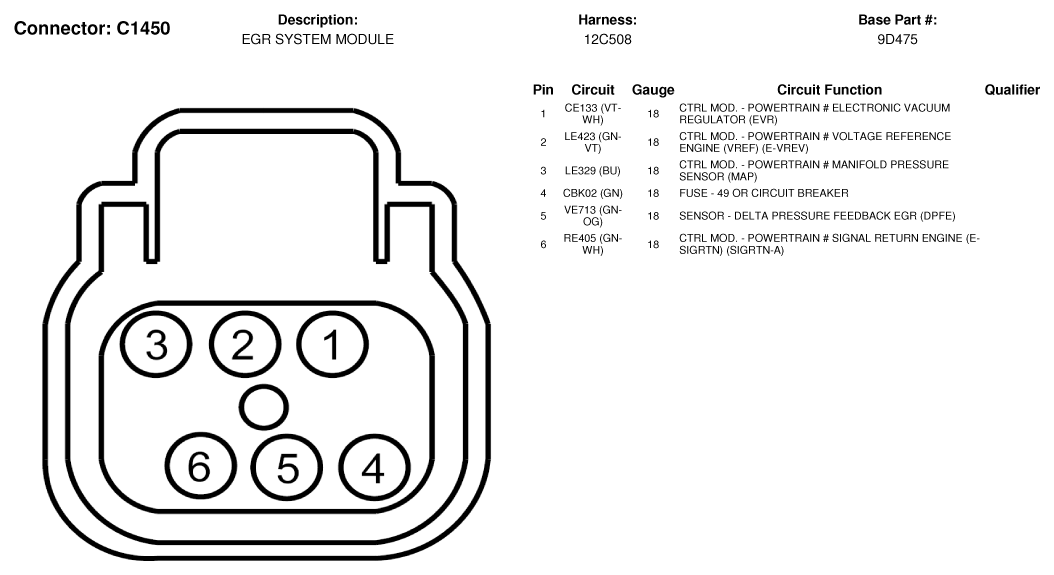

Fig 1: EGR System Module Connector End View (C1450)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
