Intake Manifold Runner Control Connector - C191

WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

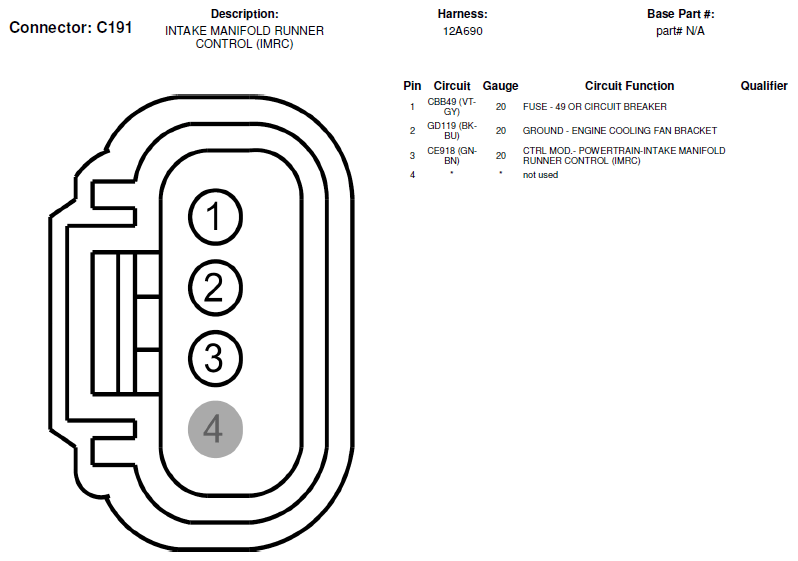

Fig 1: Intake Manifold Runner Control Connector End View (C191)
G06374656Courtesy of FORD MOTOR CO.
