Driver Side Front Seat Control Switch Connector - C360

WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

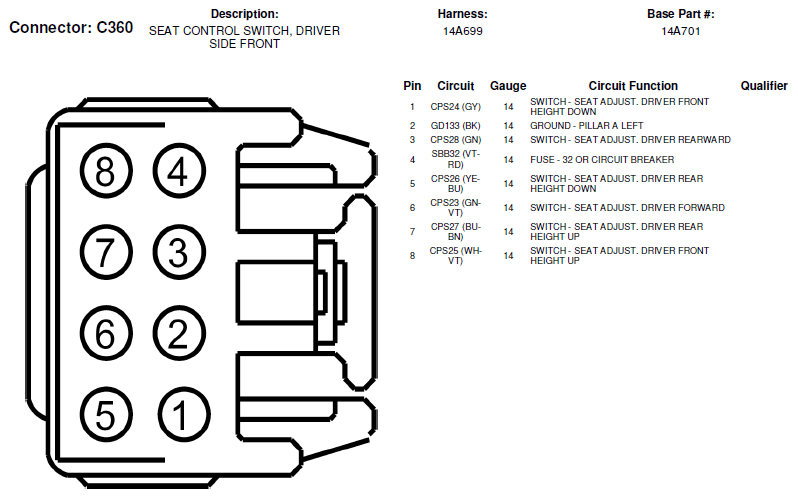

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)
G06374712Courtesy of FORD MOTOR CO.
