Ambient Air Temperature Sensor Connector

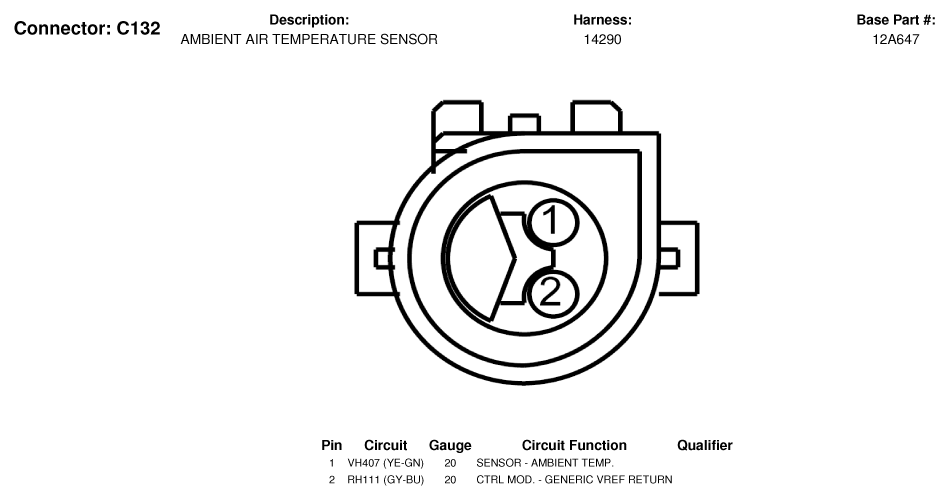

Fig 1: Ambient Air Temperature Sensor Connector End View (C132)

G07336503

Courtesy of FORD MOTOR CO.
