Left Side Air Bag Module Connector - C367

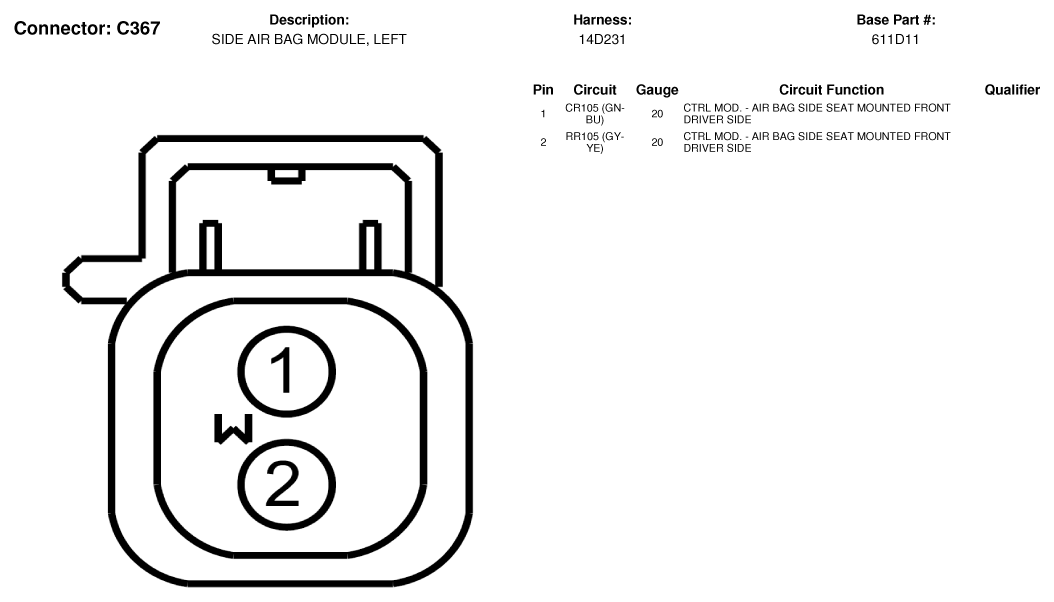

Fig 1: Left Side Air Bag Module Connector End View (C367)

G07335326

Courtesy of FORD MOTOR CO.
