Clutch Slave Cylinder: Notes

WARNING: This page is about a different variant/trim than selected.

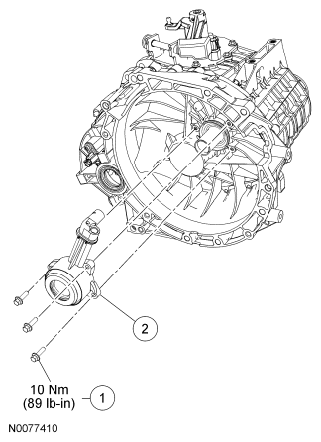

Fig 1: Exploded View Of Clutch Slave Cylinder
G06440290Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Clutch slave cylinder bolt (3 required)
2 7A508 Clutch slave cylinder
