Driver Side Front Seat Control Switch Connector - C360

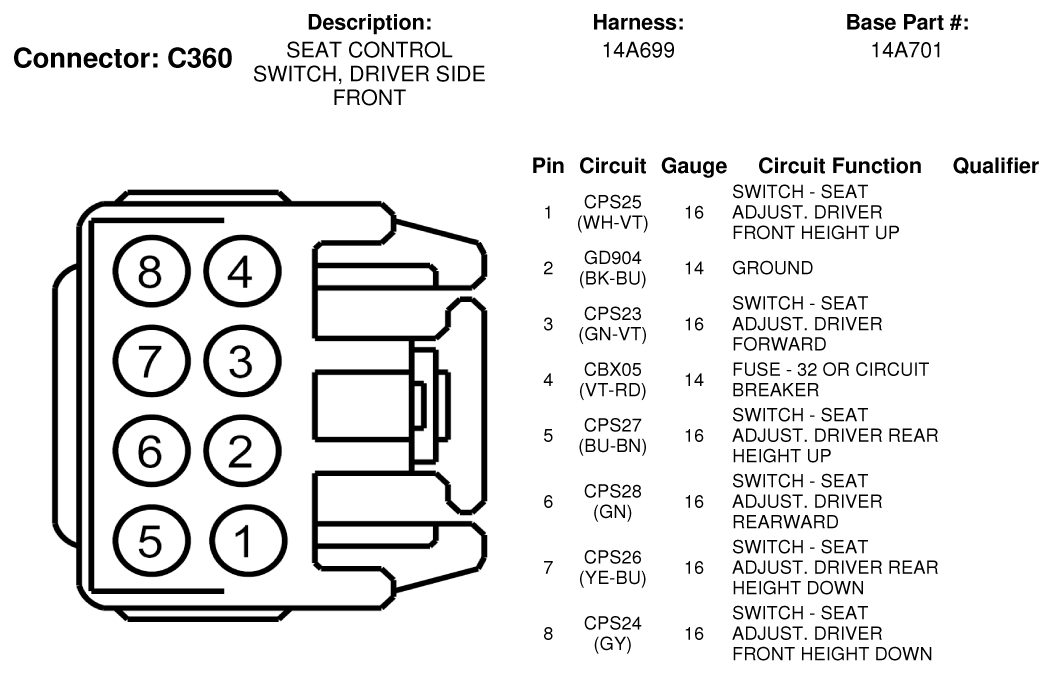

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360)

G07334895

Courtesy of FORD MOTOR CO.
