Front Power Liftgate Open/Close Switch Connector - C2269

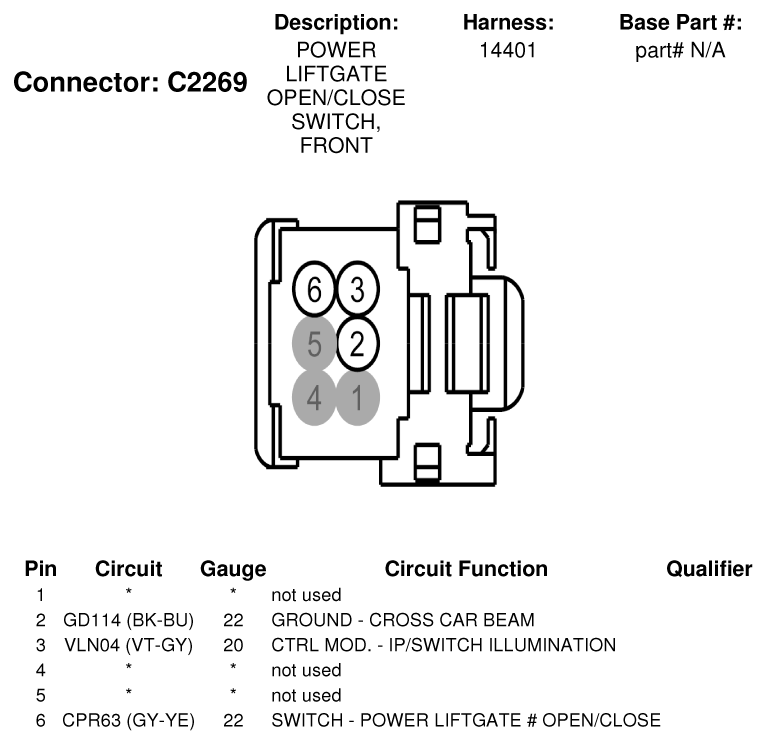

Fig 1: Front Power Liftgate Open/Close Switch Connector End View (C2269)

G07335055

Courtesy of FORD MOTOR CO.
