Receiver Drier: Material

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® PAG Refrigerant Compressor Oil YN-12-D	WSH-M1C231-B

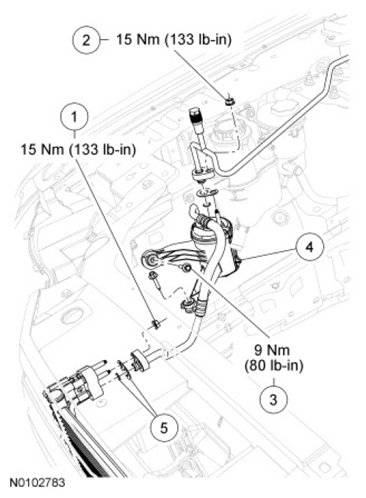

Fig 1: Exploded View Of Receiver Drier With Torque Specifications

Courtesy of FORD MOTOR CO.

RECEIVER DRIER PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W520413	Condenser outlet fitting nut
2	W520413	Receiver/drier outlet fitting nut
3	W703845	Receiver/drier bolt (2 required)
4	19C836	Receiver/drier
5	19959	O-ring seal and gasket seal kit (2 required)
