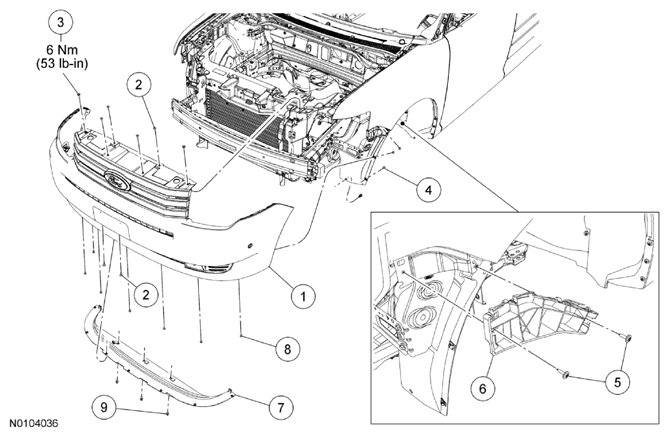

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C831 | Front bumper cover |
| 2 | W706350 | Front bumper cover pin-type retainers (4 required) |
| 3 | W711685 | Front bumper cover bolt |
| 4 | W710763 | Fender splash shield screw |
| 5 | W711676 | Front bumper cover bracket bolt |
| 6 | 17D959 LH/17D958 RH | Front bumper cover mounting reinforcement |
| 7 | 38B407 | Lower air deflector |
| 8 | W712196 | Lower air deflector screw |
| 9 | W706350 | Lower air deflector pin-type retainer |
- For additional information, refer to the appropriate procedures in this information.
