Fuel Rail Pressure (FRP) Sensor: Notes

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

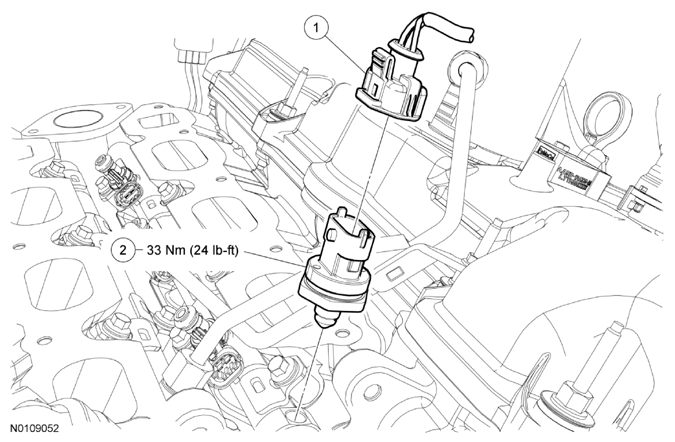

Fig 1: Fuel Rail Pressure (FRP) Sensor And Electrical Connectors With Torque Specifications
G08042676Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel Rail Pressure (FRP) sensor electrical connector
2 9G756 FRP sensor
