Side Obstacle Detection (SOD) Module: Notes

NOTE: Rear bumper cover removed for clarity.

NOTE: Left rear quarter panel shown in the illustration, right side similar.

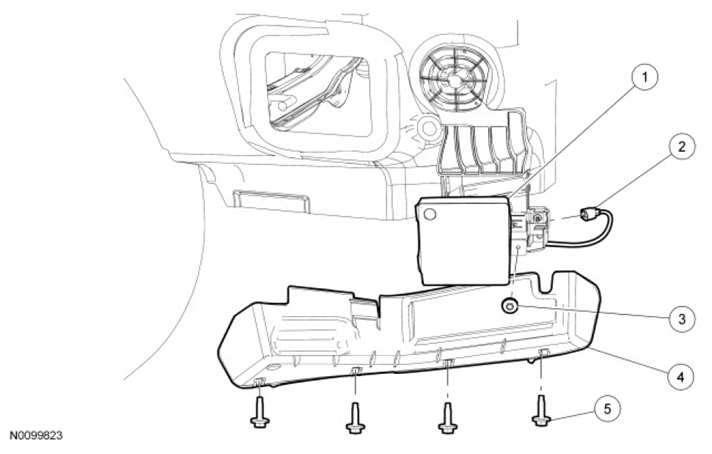

Fig 1: Locating Side Obstacle Detection Module Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	14C689	Side Obstacle Detection Control Module - Left (SODL)/Side Obstacle Detection Control Module - Right (SOD-R)
2	-	SOD-L  / SOD-R  electrical connector (part of 15K868)
3	W705796	SOD-L  / SOD-R  screw and washer
4	-	Lower rear bumper quarter panel splash shield
5	-	Lower rear bumper quarter panel splash shield screws (4 required)
