Home >> Ford >> 2011 >> Fiesta SES, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Safety Belt System >> Removal And Installation >> Child Safety Seat Tether Anchor >> Notes

Child Safety Seat Tether Anchor: Notes

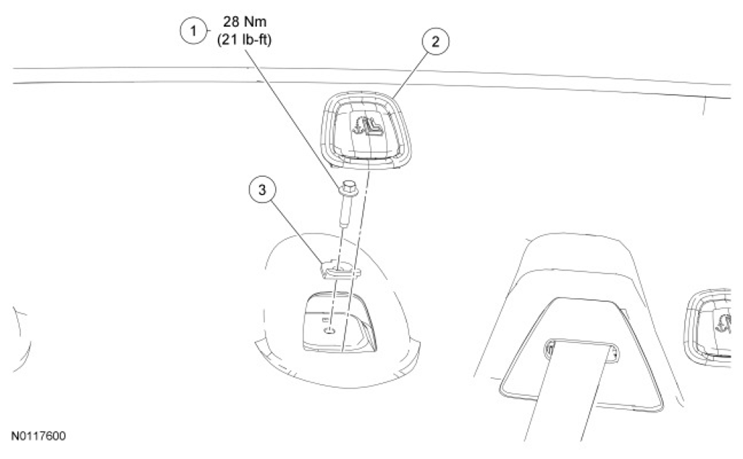

Fig 1: Child Safety Seat Tether Anchor, Trim Cover And Anchor Bolt With Torque Specification
G06939883Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W708745 Child safety seat tether anchor bolt (3 required)
2 613E54 Child safety seat tether anchor trim cover (3 required)
3 613D74 Center child safety seat tether anchor (3 required)
