Main Control - Overhaul: Overhaul

    NOTE: Note the location of the different length bolts for assembly.

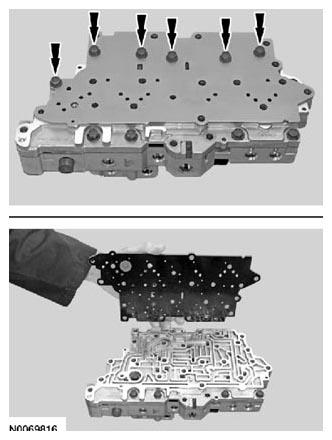

    Fig 1: Locating Transfer Plate Cover Assembly Mounting Bolts
    G07430462Courtesy of FORD MOTOR CO.
  1. Remove the 6 bolts and remove and discard the transfer plate cover assembly.
    2. NOTE: Note the location of the different length bolts for assembly.

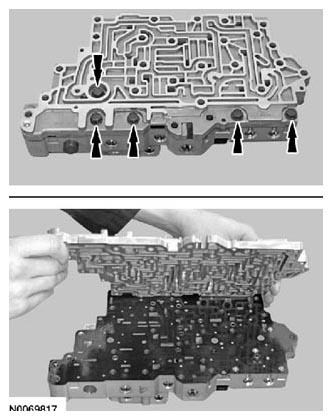

    Fig 2: Locating Transfer Plate Assembly Bolts
    G07430463Courtesy of FORD MOTOR CO.
  2. Remove the 5 valve body bolts and the transfer plate assembly.
  3. Remove and discard the valve body separator plate.
    Fig 3: Locating Valve Body Separator Plate And Gasket
    G07430464Courtesy of FORD MOTOR CO.
    4. NOTE: Note the location of the check balls for assembly.
    Fig 4: Locating Check Balls
    G07430465Courtesy of FORD MOTOR CO.
  4. Remove the 7 check balls from the valve body.
  5. Remove the lower valve body assembly.
    Fig 5: Locating Lower Valve Body Assembly
    G07430466Courtesy of FORD MOTOR CO.
  6. Remove and discard the lower valve body separator plate and gasket.

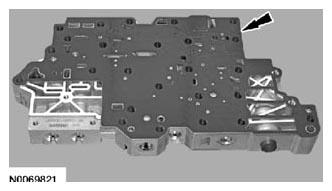

    Fig 6: Locating Lower Valve Body Separator Plate And Gasket
    G07430467Courtesy of FORD MOTOR CO.
  7. Remove the manual valve from the valve body.

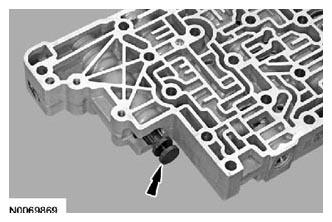

    Fig 7: Locating Manual Valve
    G07430468Courtesy of FORD MOTOR CO.
    8. NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. It may be necessary to remove the valves and springs using a pick. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Take special care when handling the main control components, since they are the most precise and delicate parts of the transmission. Neatly arrange the parts as they are removed to avoid mixing similar pieces.
    NOTE: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.

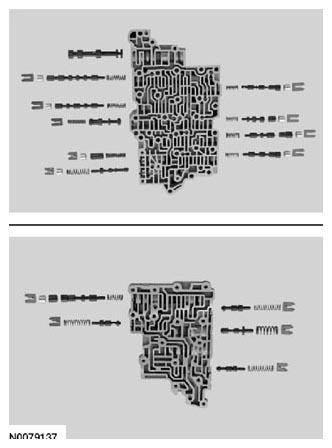

    Fig 8: Identifying Valve And Spring
    G07430469Courtesy of FORD MOTOR CO.
  8. Remove the individual valves and springs from the main control valve body and lower valve body by removing the retaining clips. See the Valve Body and Lower Valve Body illustrations at the beginning of this procedure for valve and spring locations. Clean valves, springs, main control valve body and lower valve body.
    9. NOTE: Do not stone or polish any valves. If the valves do not move freely during assembly, install a new valve body.
  9. Install the valve body valves, springs and retaining clips in the main control valve body and lower valve body. See the Valve Body and Lower Valve Body illustrations at the beginning of this procedure for valve and spring locations.
  10. Install the manual valve in the valve body.
    Fig 9: Locating Manual Valve
    G07430470Courtesy of FORD MOTOR CO.
  11. Position a new lower valve body separator plate and gasket on the main control valve body.
    Fig 10: Locating Lower Valve Body Separator Plate And Gasket
    G07430471Courtesy of FORD MOTOR CO.
  12. Position the lower valve body on the main control valve body.

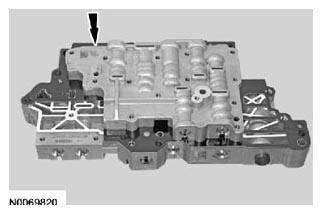

    Fig 11: Locating Lower Valve Body Assembly
    G07430472Courtesy of FORD MOTOR CO.
    13. NOTE: Install the check balls in the correct location as noted during disassembly.

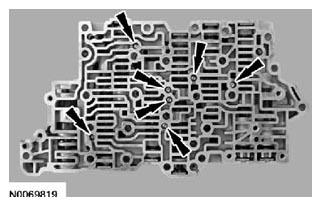

    Fig 12: Locating Check Balls
    G07430473Courtesy of FORD MOTOR CO.
  13. Install the 7 check balls.
  14. Install a new valve body separator plate and gasket.

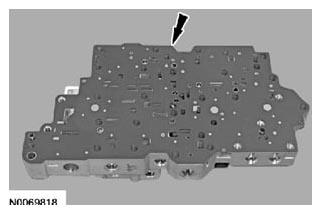

    Fig 13: Locating Valve Body Separator Plate And Gasket
    G07430474Courtesy of FORD MOTOR CO.
    15. NOTE: Install the different length bolts in the correct location as noted during disassembly.
  15. Install the transfer plate assembly and hand-tighten the 5 bolts.
    1. 63 mm (2.4803 in) bolts
    2. 35 mm (1.378 in) bolts

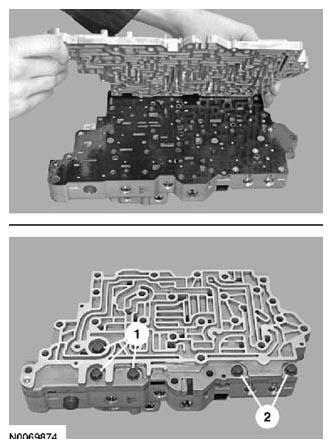

      Fig 14: Removing Transfer Plate Assembly
      G07430475Courtesy of FORD MOTOR CO.
  16. Tighten the 5 valve body bolts.

    Tighten to 12 Nm (106 lb-in).

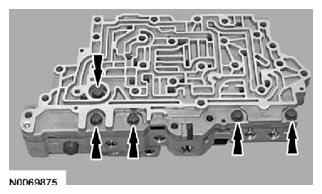

    Fig 15: Locating Transfer Plate Assembly Bolts
    G07430476Courtesy of FORD MOTOR CO.
    17. NOTE: Install the different length bolts in the correct location as noted during disassembly.
  17. Install a new transfer plate cover assembly and hand-tighten the 6 bolts.
    1. 63 mm (2.4803 in) bolts
    2. 35 mm (1.378 in) bolts

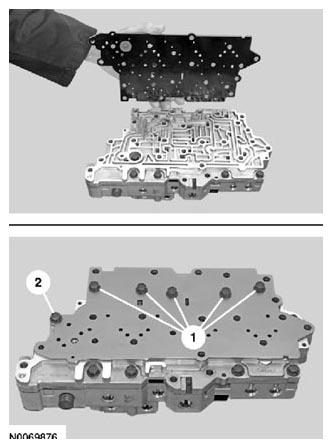

      Fig 16: Identifying Transfer Plate Cover Assembly Bolts
      G07430477Courtesy of FORD MOTOR CO.
  18. Tighten the 6 valve body bolts.

    Tighten to 12 Nm (106 lb-in).

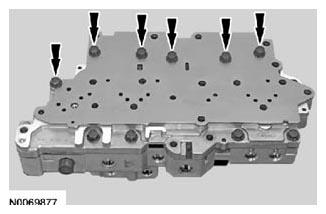

    Fig 17: Locating Valve Body Mounting Bolts
    G07430478Courtesy of FORD MOTOR CO.
