Automatic Transmission - 6F50 And 6F55
>>
Disassembly And Assembly Of Subassemblies
>>
Differential - Front Wheel Drive (FWD)
>>
Exploded View
Exploded View

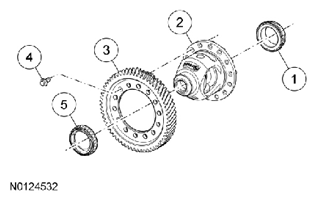

Fig 1: Exploded View Of Front Wheel Drive
Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART
Item
Service Part Number
Description
1
4221
Bearing
2
7F465
Differential case assembly
3
7F343
Differential ring gear
4
7J286
Bolt - M10 x 25
5
4221
Bearing
