Third Row Power Point Connector - C3323
Third Row Power Point Connector - C3323

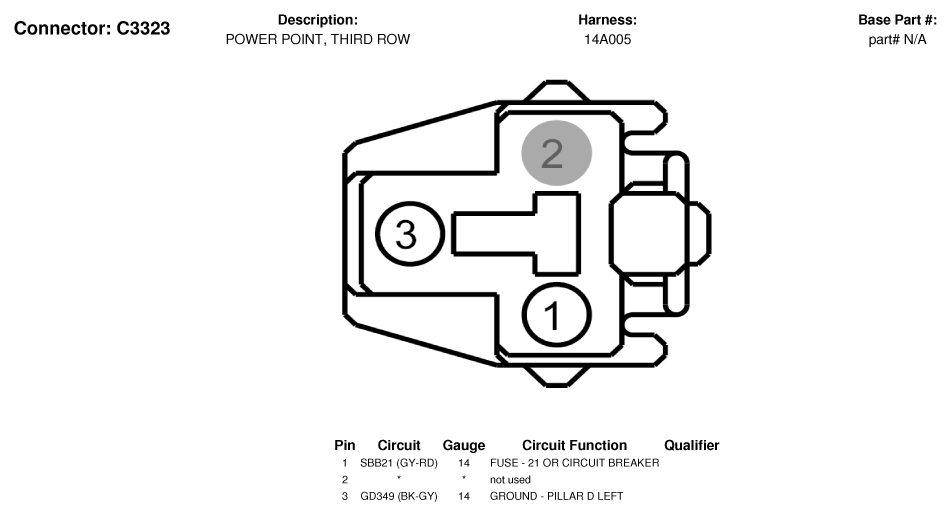

Fig 1: Third Row Power Point Connector End View (C3323)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
