Start / Stop Switch Connector - C2195

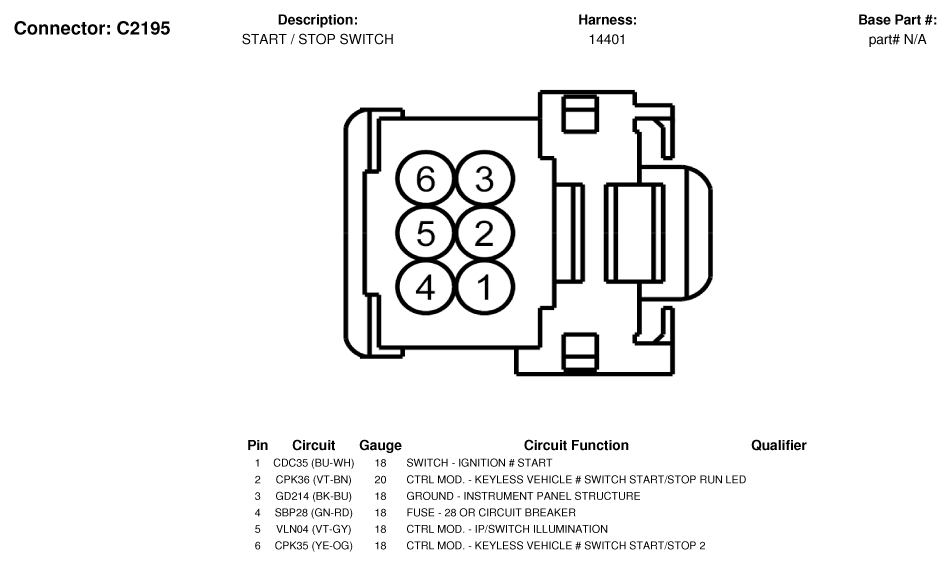

Fig 1: Start / Stop Switch Connector End View (C2195)

G07328105

Courtesy of FORD MOTOR CO.
