Roof Opening Panel Control Switch Connector - C912

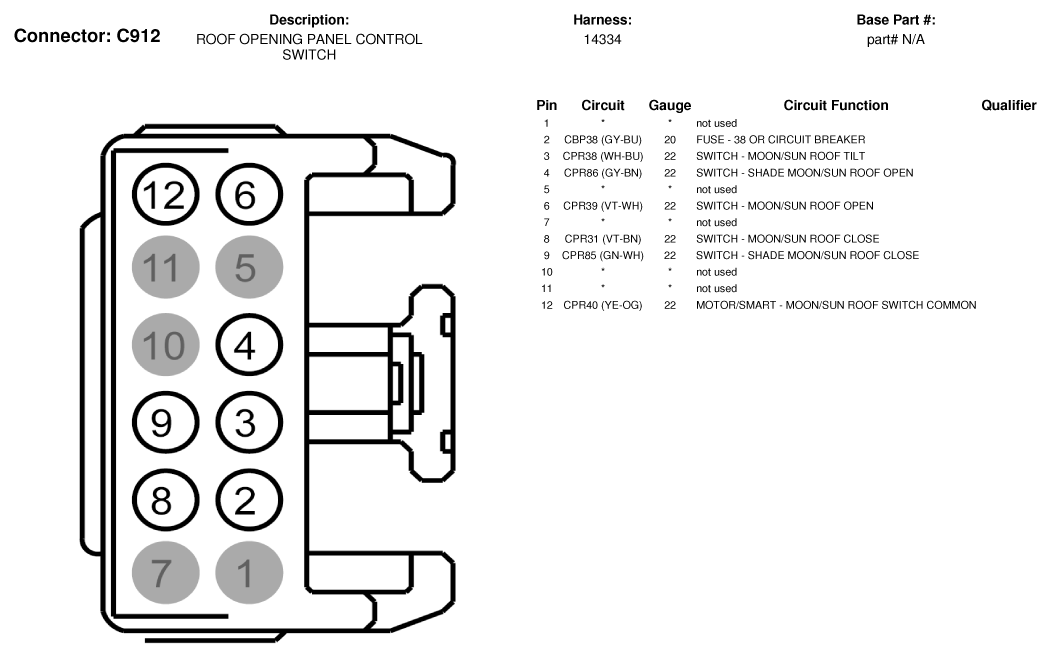

Fig 1: Roof Opening Panel Control Switch Connector End View (C912)

G07328040

Courtesy of FORD MOTOR CO.
