Liftgate Release Switch Connector - C4216

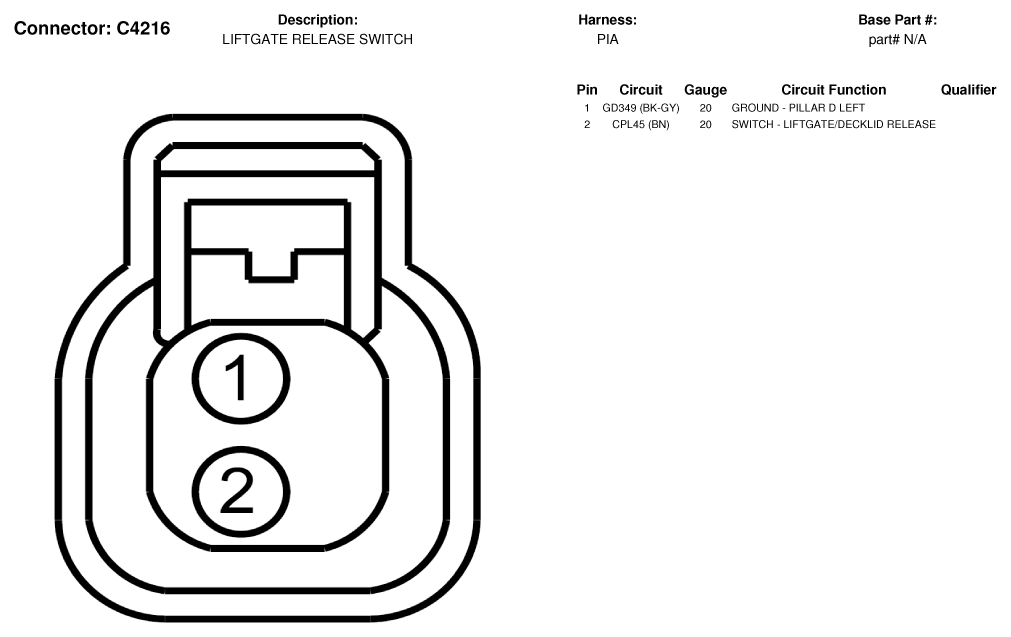

Fig 1: Liftgate Release Switch Connector End View (C4216)

G07328227

Courtesy of FORD MOTOR CO.
