Liftgate Latch/Unlatch Assembly Connector - C4339

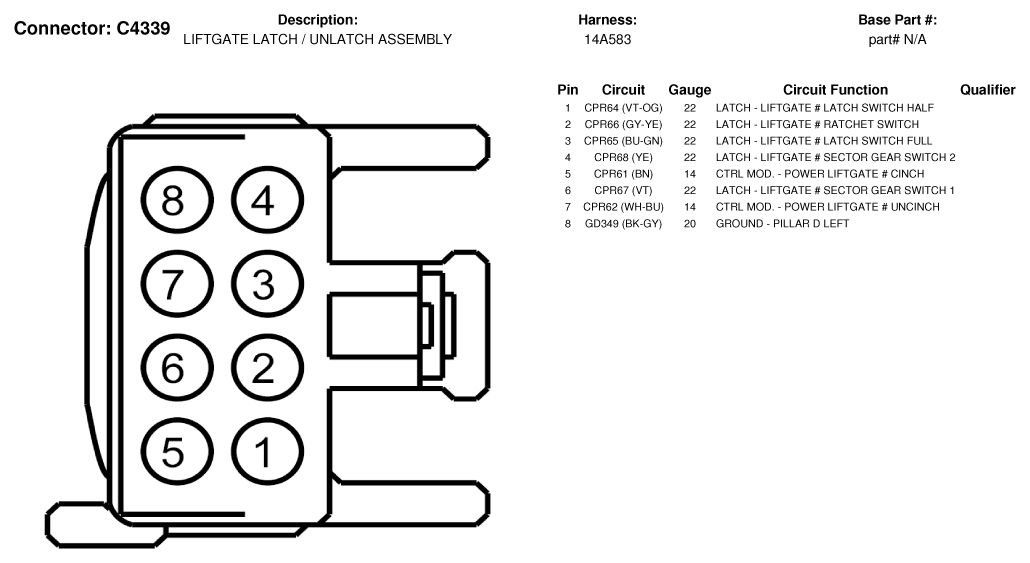

Fig 1: Liftgate Latch/Unlatch Assembly Connector End View (C4339)

G07328245

Courtesy of FORD MOTOR CO.
