Liftgate Latch Connector - C457

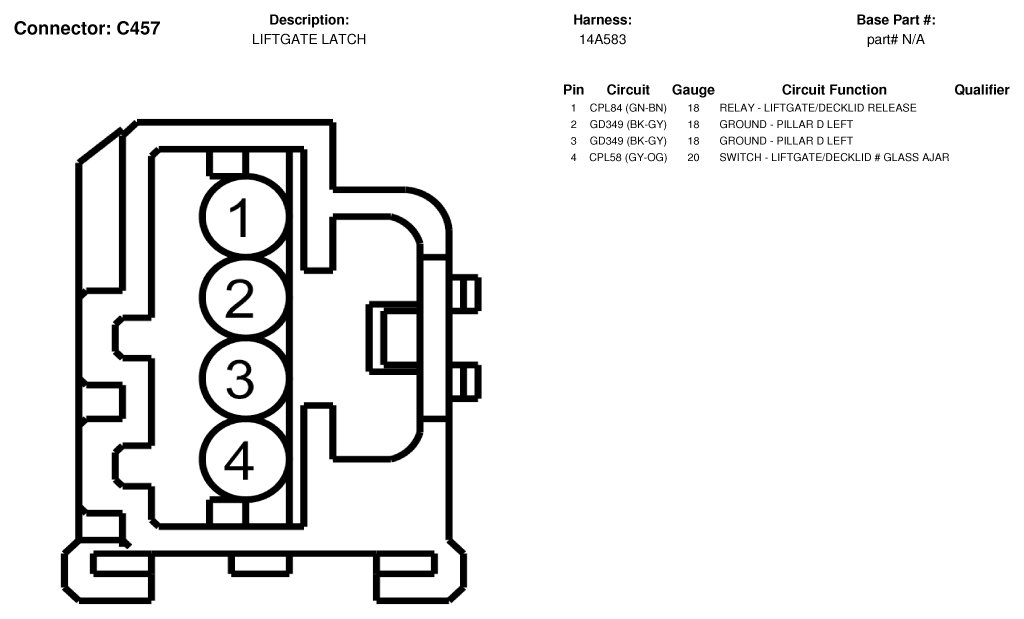

Fig 1: Liftgate Latch Connector End View (C457)

G07327990

Courtesy of FORD MOTOR CO.
