Left Second Row Seat Control Switch Connector - C3343

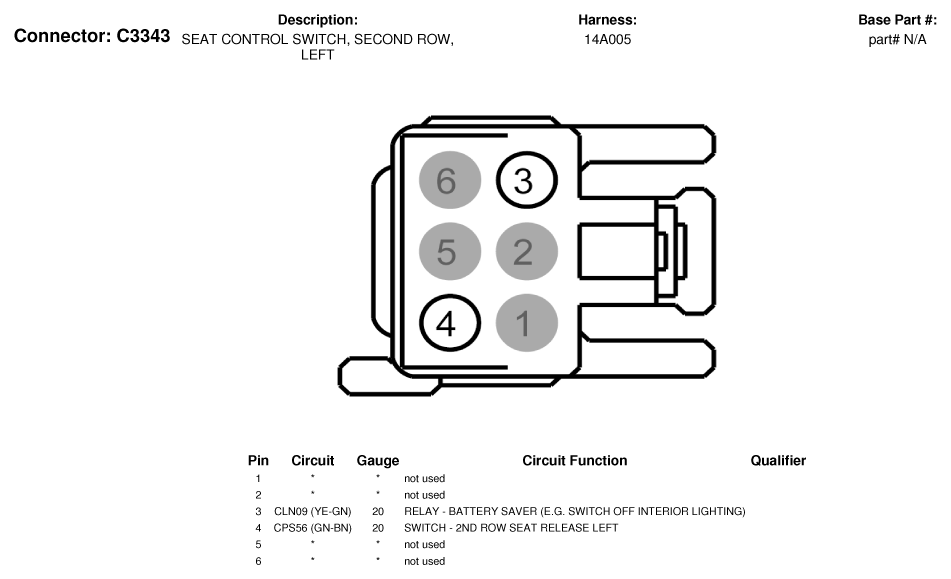

Fig 1: Left Second Row Seat Control Switch Connector End View (C3343)

G07328189

Courtesy of FORD MOTOR CO.
