Left Front Tweeter Connector - C513

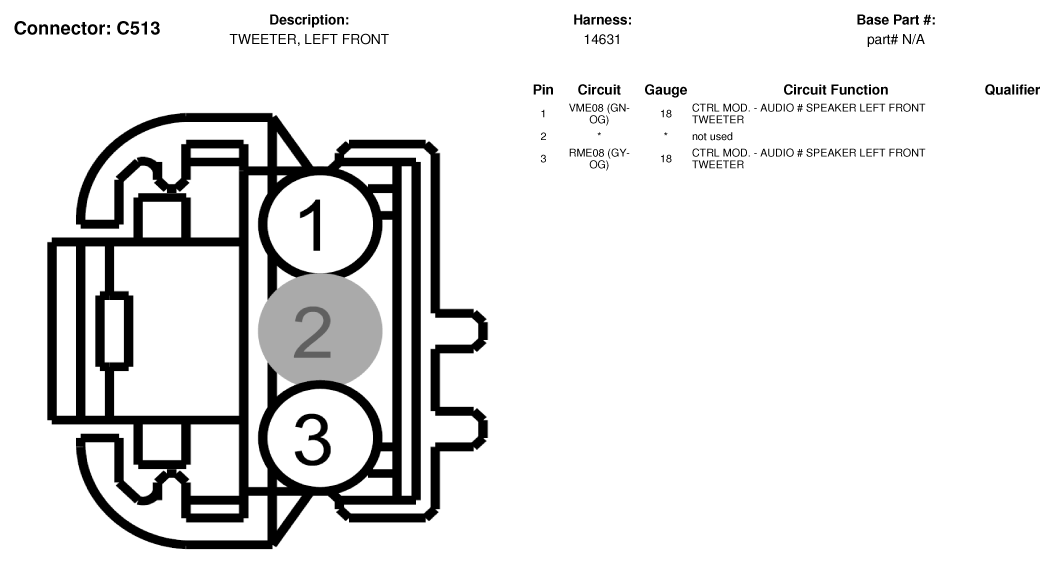

Fig 1: Left Front Tweeter Connector End View (C513)

G07328001

Courtesy of FORD MOTOR CO.
