Console Front Power Point Connector - C3063

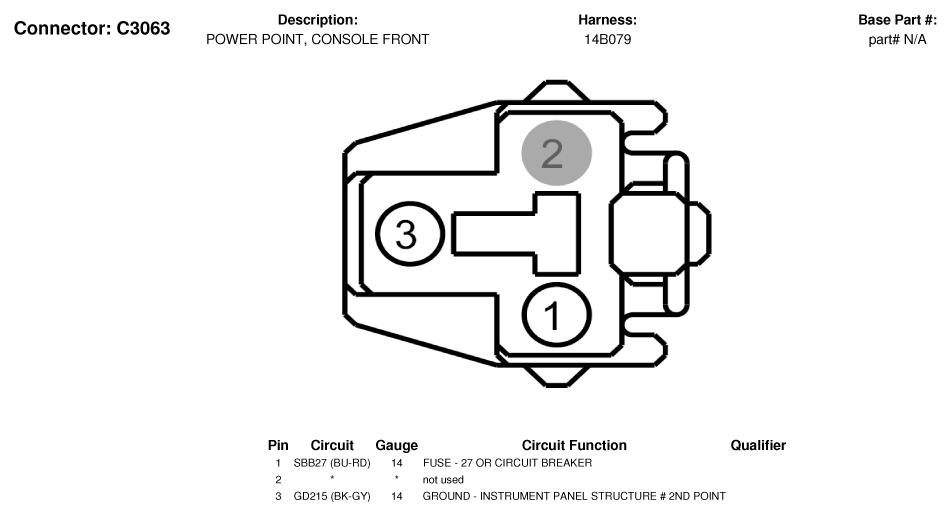

Fig 1: Console Front Power Point Connector End View (C3063)

G07328148

Courtesy of FORD MOTOR CO.
