Backup Transceiver Connector - C3371

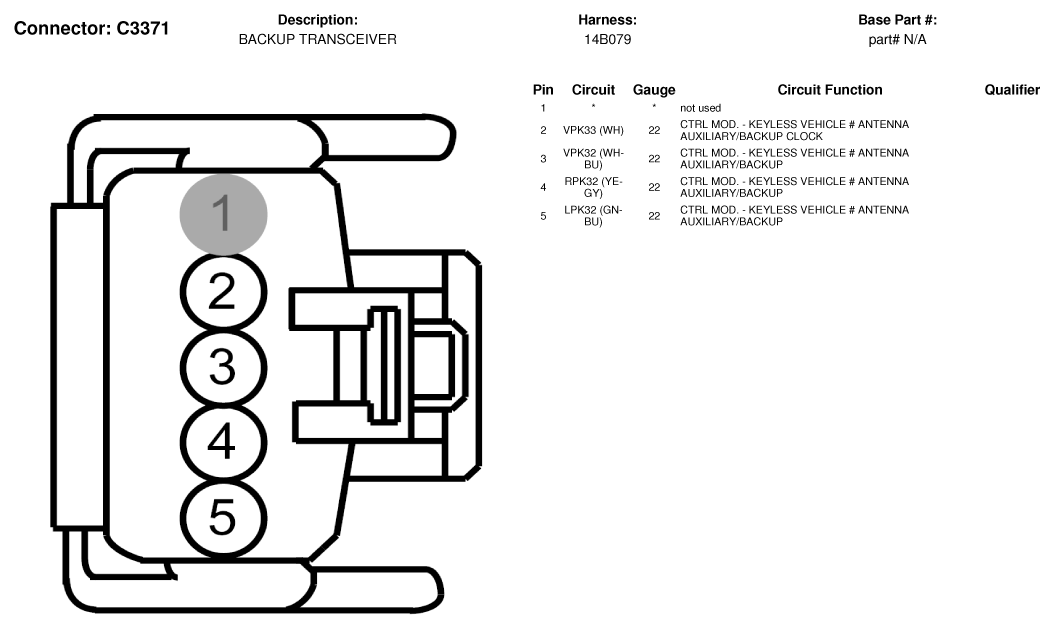

Fig 1: Backup Transceiver Connector End View (C3371)

G07328193

Courtesy of FORD MOTOR CO.
