Auxiliary Climate Control Assembly Connector - C3198

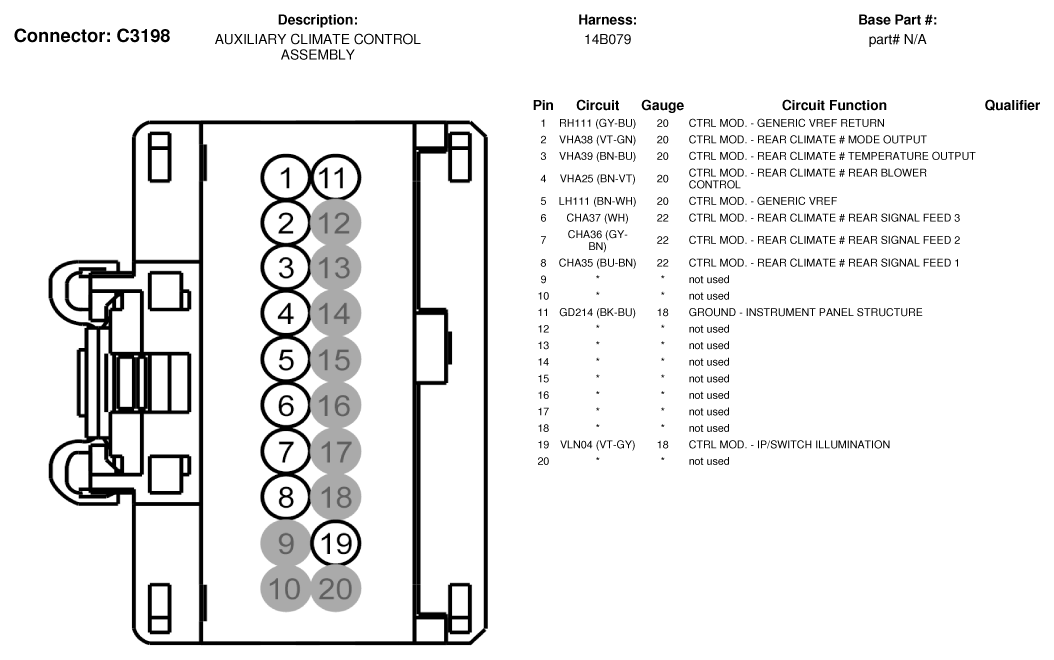

Fig 1: Auxiliary Climate Control Assembly Connector End View (C3198)

G07328171

Courtesy of FORD MOTOR CO.
