Ignition Coil-On-Plug - LH: Installation

  1. Inspect the ignition coil-on-plug seals for rips, nicks or tears. Remove and discard any damaged ignition coil-on-plug seals.
    • To install, slide the new ignition coil-on-plug seal onto the ignition coil-on-plug until it is fully seated at the top of the coil-on-plug.

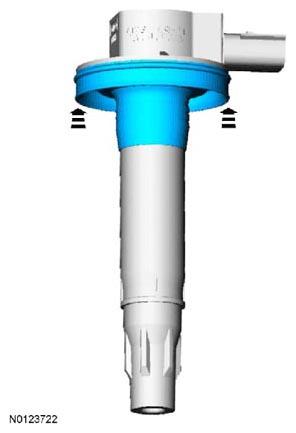

      Fig 1: Installing Ignition Coil-On-Plug Seal Onto Ignition Coil-On-Plug
      G07418723
    2. NOTE: Apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.
  2. Install the Left Hand (LH) ignition coil-on-plugs.
  3. Install the 3 Left Hand (LH) ignition coil-on-plugs.
  4. Install the 3 Left Hand (LH) ignition coil-on-plug bolts.

    Tighten to 7 Nm (62 lb-in).

  5. Connect the 3 Left Hand (LH) ignition coil-on-plug electrical connectors.
