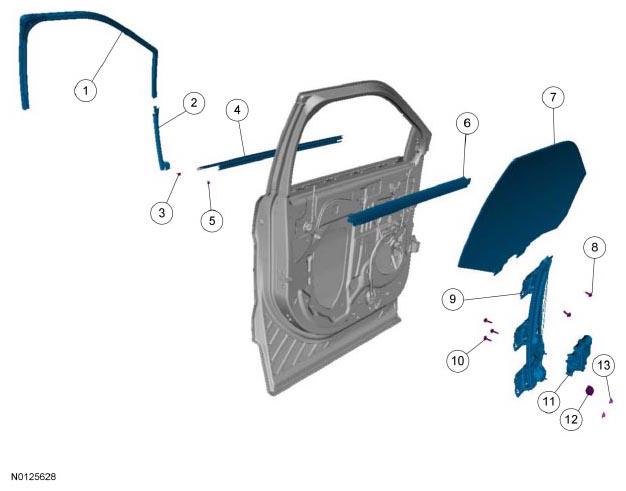

Exploded View
REFER to GLASS, FRAMES, AND MECHANISMS
PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 21596 Right Hand (RH) / 21597 Left Hand (LH) | Door window glass top run | - | - | - |
| 2 | 214A32 Right Hand (RH) / 214A33 Left Hand (LH) | Lower door window glass top run | - | - | - |
| 3 | W505423 | Lower door window glass top run bolt | - | - | 8 Nm (71 lb-in) |
| 4 | 21452 Right Hand (RH) /21453 Left Hand (LH) | Exterior door window glass belt moulding | - | - | - |
| 5 | W715453 | Exterior door window glass belt moulding screw | - | - | - |
| 6 | 21434 Right Hand (RH) /21435 Left Hand (LH) | Interior door window glass belt moulding | - | - | - |
| 7 | 214A50 Right Hand (RH) / 214A51 Left Hand (LH) | Door window glass | - | - | - |
| 8 | W505423 | Door window glass bolt (2 required) | - | - | 8 Nm (71 lb-in) |
| 9 | 23200 Right Hand (RH) / 23201 Left Hand (LH) | Window regulator | - | - | - |
| 10 | - | Window regulator motor screw (3 required) | - | - | - |
| 11 | 27144 Right Hand (RH) / 27145 Left Hand (LH) | Window regulator motor | - | - | - |
| 12 | - | Window regulator motor electrical connector (part of 14630 Right Hand (RH) /14631 Left Hand (LH)) | - | - | - |
| 13 | W701014 | Window regulator nut (2 required) | - | - | 11 Nm (97 lb-in) |
