Pinpoint Test

  1. CHECK THE SUSPECT REAR POWER WINDOW OPERATION FROM Left Hand (LH) FRONT CONTROL SWITCH
    1. Ignition ON.
    2. Attempt to operate the suspect rear window from the Left Hand (LH) front window control switch.
      • Does the rear window operate when using the Left Hand (LH) front window control switch?
      • Yes:  GO to step 2 .
      • No:  GO to step  3 .
  2. CHECK THE FRONT WINDOW CONTROL SWITCH LOCK-OUT CIRCUIT FOR AN OPEN
    1. Ignition OFF.
    2. Disconnect: Suspect Rear Window Control Switch C701 (Left Hand (LH)) or C801 (Right Hand (RH)).
    3. Ignition ON.
      4. NOTE: Make sure the Left Hand (LH) window control switch lockout switch is in the UNLOCK position.
      Fig 1: Checking Front Window Control Switch Lock-Out Circuit For Open
      G07429223Courtesy of FORD MOTOR CO.
    4. Measure:
      • Is the voltage greater than 11 volts?
      • Yes:  INSTALL a new rear window control switch. REFER to WINDOW CONTROL SWITCH .
      • No:  REPAIR the circuit.
  3. CHECK THE SUSPECT WINDOW CONTROL SWITCH VOLTAGE CIRCUIT FOR AN OPEN
    1. Ignition OFF.
    2. Disconnect: Suspect Rear Window Control Switch C701 (Left Hand (LH)) or C801 (Right Hand (RH)).
    3. Ignition ON.
    4. Measure:

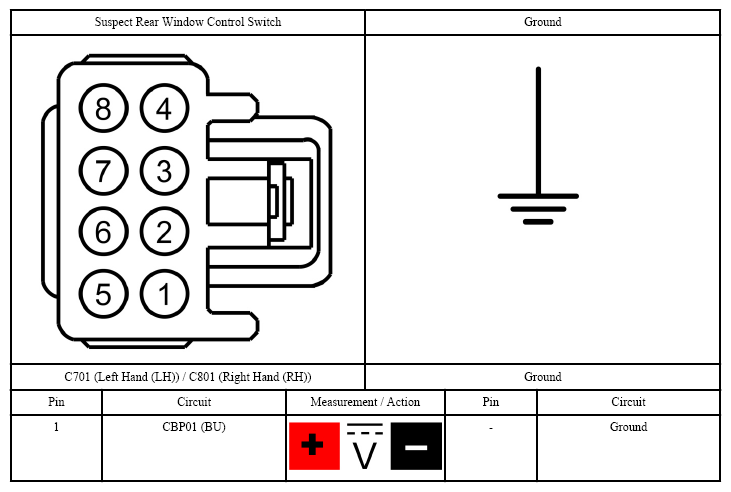

      Fig 2: Checking Suspect Window Control Switch Voltage Circuit For Open
      G07429224Courtesy of FORD MOTOR CO.
      • Is the voltage greater than 11 volts?
      • Yes:  GO to step 4 .
      • No:  REPAIR the circuit.
  4. CHECK THE SUSPECT WINDOW CONTROL SWITCH GROUND CIRCUIT FOR AN OPEN
    1. Ignition OFF.
    2. Measure:

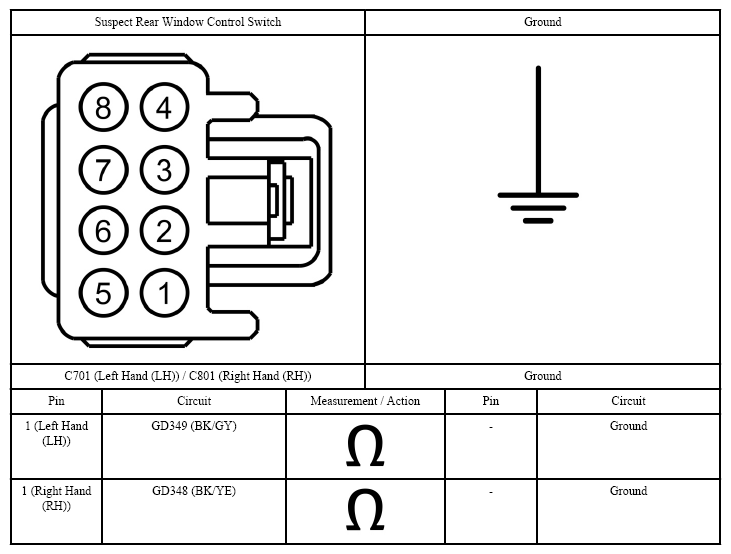

      Fig 3: Checking Suspect Window Control Switch Ground Circuit For Open
      G07429225Courtesy of FORD MOTOR CO.
      • Is the resistance less than 3 ohms?
      • Yes:  GO to step 5 .
      • No:  REPAIR the circuit.
  5. CHECK THE SUSPECT WINDOW CONTROL SWITCH FOR VOLTAGE SIGNAL FROM THE Left Hand (LH) FRONT WINDOW CONTROL SWITCH
    1. Ignition ON.
    2. For Left Hand (LH) rear window, while pressing and releasing the Left Hand (LH) front window control switch, measure:

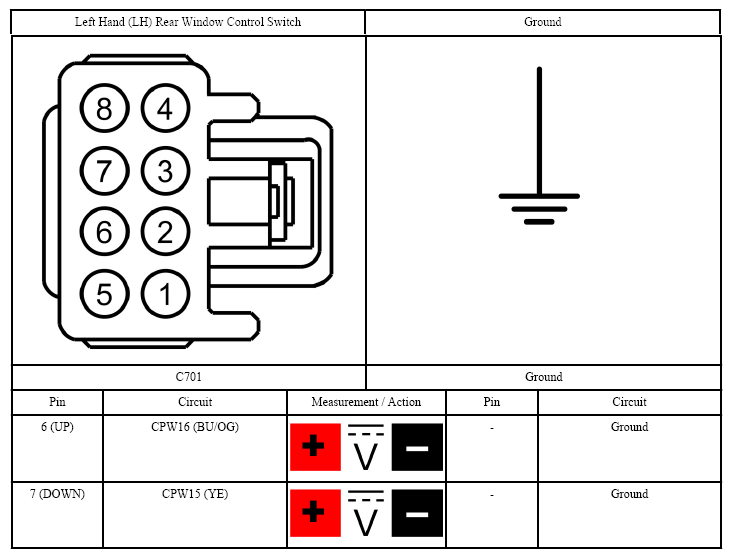

      Fig 4: Checking Suspect Window Control Switch For Voltage Signal From Left Hand (LH) Rear Window Control Switch
      G07429226Courtesy of FORD MOTOR CO.
    3. For Right Hand (RH) rear window, while pressing and releasing the Left Hand (LH) front window control switch, measure:
      Fig 5: Checking Suspect Window Control Switch For Voltage Signal From Right Hand (RH) Front Window Control Switch
      G07429227Courtesy of FORD MOTOR CO.
      • Is the voltage greater than 11 volts when the Left Hand (LH) front window control switch is pressed; and 0 volt when released?
      • Yes:  GO to step  8 .
      • No:  If voltage was less than 11 volts when the switch was pressed, GO to step 6 .

        If voltage was greater than 0 volt when the switch was released, GO to step  7 .

  6. CHECK FOR AN OPEN BETWEEN THE SUSPECT WINDOW CONTROL SWITCH AND THE Left Hand (LH) FRONT WINDOW CONTROL SWITCH
    1. Ignition OFF.
    2. Disconnect: Left Hand (LH) Front Window Control Switch.
    3. For Left Hand (LH) rear window, measure:

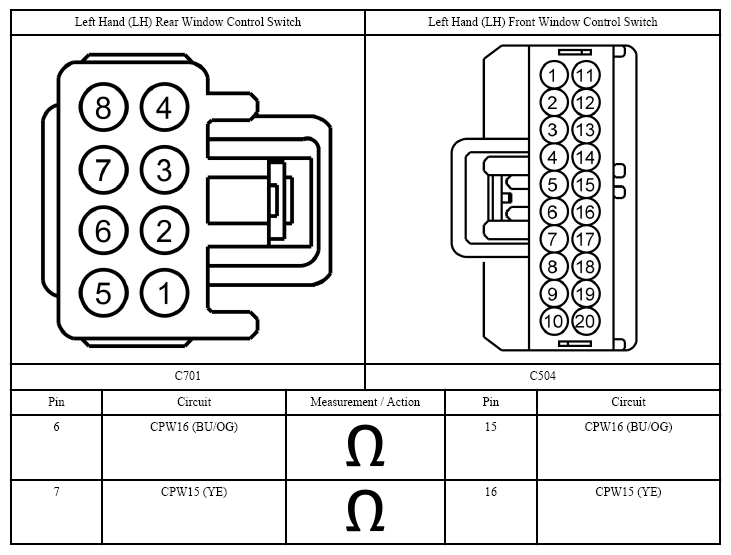

      Fig 6: Checking For Open Between Suspect Window Control Switch And Left Hand (LH) Rear Window Control Switch
      G07429228Courtesy of FORD MOTOR CO.
    4. For Right Hand (RH) rear window, measure:
      Fig 7: Checking For Open Between Suspect Window Control Switch And Right Hand (RH) Rear Window Control Switch
      G07429229Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      • Yes:  INSTALL a new Left Hand (LH) front window control switch. REFER to WINDOW CONTROL SWITCH .
      • No:  REPAIR the affected circuit.
  7. CHECK THE SUSPECT WINDOW CONTROL SWITCH FOR VOLTAGE SIGNAL FROM THE Left Hand (LH) FRONT WINDOW CONTROL SWITCH
    1. Ignition OFF.
    2. Disconnect: Left Hand (LH) Front Window Control Switch.
    3. Ignition ON.
    4. For Left Hand (LH) rear window, measure:
      Fig 8: Checking Suspect Window Control Switch For Voltage Signal From Left Hand (LH) Front Window Control Switch
      G07429230Courtesy of FORD MOTOR CO.
    5. For Right Hand (RH) rear window, measure:
      Fig 9: Checking Suspect Window Control Switch For Voltage Signal From Left Hand (RH) Rear Window Control Switch
      G07429231Courtesy of FORD MOTOR CO.
      • Is any voltage present?
      • Yes:  REPAIR the affected circuit.
      • No:  INSTALL a new Left Hand (LH) front window control switch. REFER to WINDOW CONTROL SWITCH .
  8. CHECK THE SUSPECT WINDOW CONTROL SWITCH OPERATION
    1. Ignition ON.
    2. To check upward window operation, connect fused jumper wires:

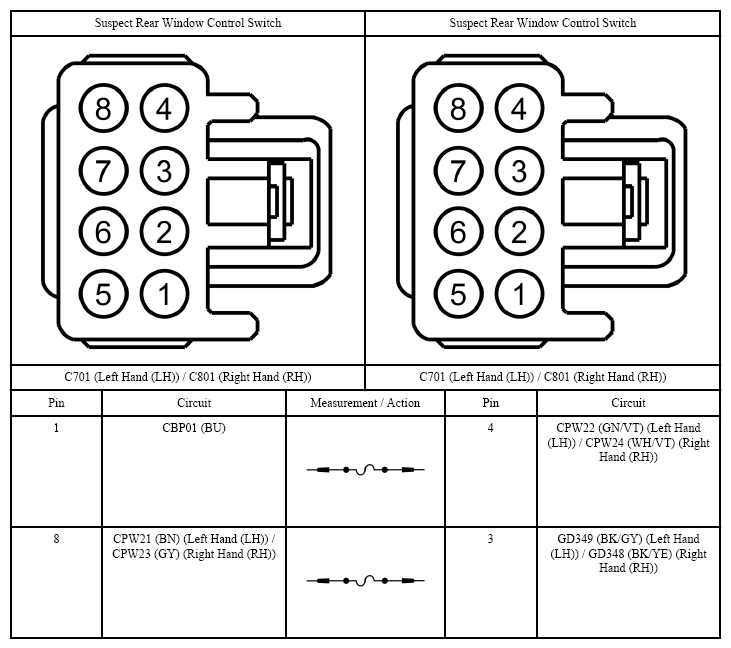

      Fig 10: Checking Suspect Window Control Switch Operation (Upward Window Operation)
      G07429232Courtesy of FORD MOTOR CO.
    3. To check downward window operation, connect fused jumper wires:

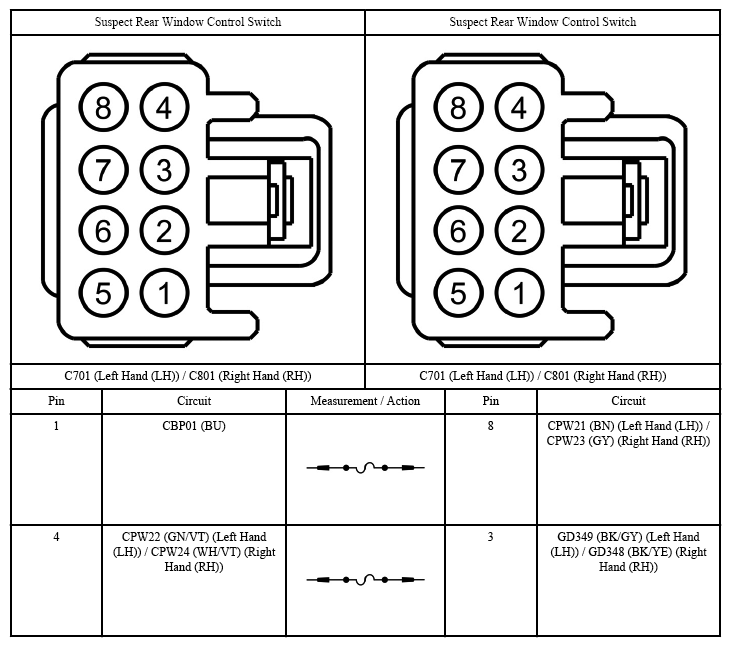

      Fig 11: Checking Suspect Window Control Switch Operation (Downward Window Operation)
      G07429233Courtesy of FORD MOTOR CO.
      • Does the rear window move up and/or down?
      • Yes:  INSTALL a new rear window control switch. REFER to WINDOW CONTROL SWITCH .
      • No:  GO to step 9 .
  9. CHECK FOR AN OPEN CIRCUIT BETWEEN THE SUSPECT WINDOW CONTROL SWITCH AND WINDOW MOTOR
    1. Disconnect: Suspect Rear Window Motor C703 (Left Hand (LH)) or C803 (Right Hand (RH)).
    2. Measure

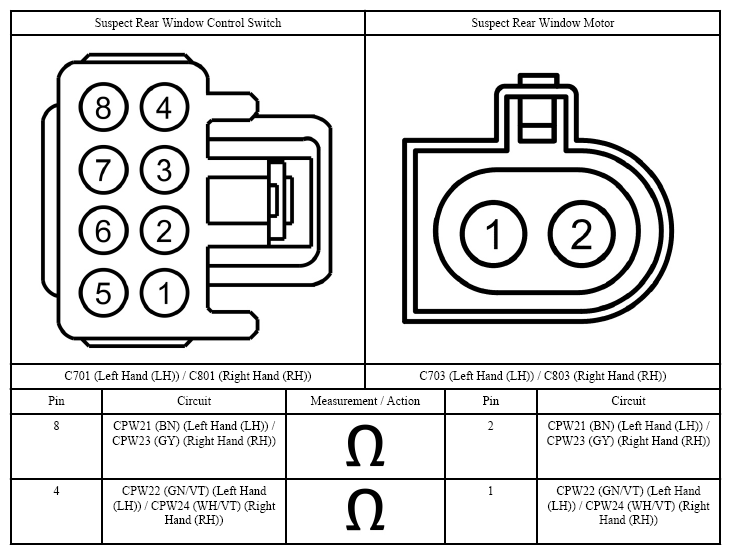

      Fig 12: Checking For Open Circuit Between Suspect Window Control Switch And Window Motor
      G07429234Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
