Pinpoint Test

  1. CHECK THE HORIZONTAL MOTOR FOR CORRECT OPERATION
    1. Operate the driver seat forward and rearward.
      • Does the seat move horizontally?
      1. Yes:  GO to 4  on page 3.
      2. No:  GO to 2  on page 2.
  2. CHECK FOR VOLTAGE TO THE DRIVER SEAT HORIZONTAL MOTOR
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: Driver Seat Horizontal Motor C362.
      4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.
      Fig 1: Measuring Driver Seat Horizontal Motor Connector Terminal Identification
      G07427735Courtesy of FORD MOTOR CO.
    4. While pushing the driver seat control switch forward and rearward, measure:
      • Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?
      1. Yes:  INSTALL a new seat track assembly. REFER to SEAT TRACK . GO to 9  on page 7.
      2. No:  GO to 3  on page 3.
  3. CHECK THE HORIZONTAL MOTOR CIRCUITS FOR AN OPEN
    1. Disconnect: Driver Seat Control Switch C360.
    2. Measure:

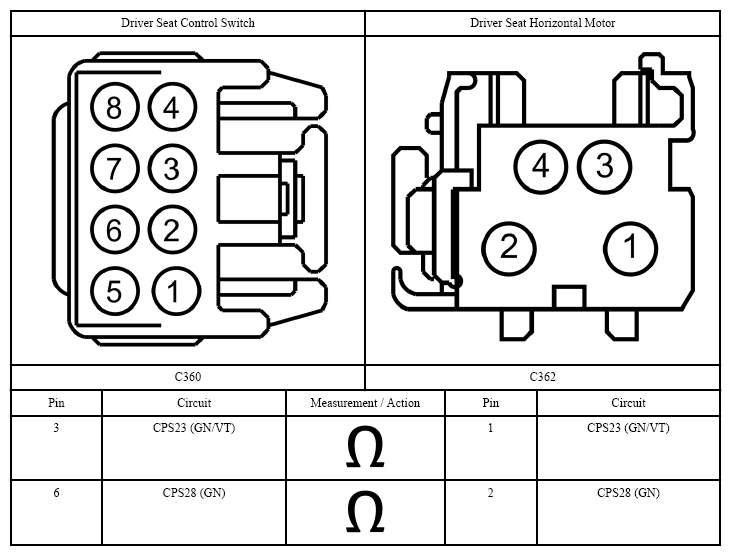

      Fig 2: Measuring Driver Seat Control Switch Connector And Driver Seat Horizontal Motor Connector Terminal Identification
      G07427736Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      1. Yes:  INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH . GO to 9  on page 7.
      2. No:  REPAIR the affected circuit. GO to 9  on page 7.
  4. DETERMINE THE SEAT HEIGHT ADJUST FAILURE
    1. Operate the seat front and rear height adjustments.
      • Are both front and rear seat height adjustments inoperative?
      1. Yes:  INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH . GO to 9  on page 7.
      2. No:  If only the front height adjust motor operates, GO to 5  on page 3.

        If only the rear height adjust motor operates, GO to 7  on page 5.

  5. CHECK FOR VOLTAGE TO THE REAR HEIGHT MOTOR
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: Driver Seat Rear Height Motor C363.
      4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.

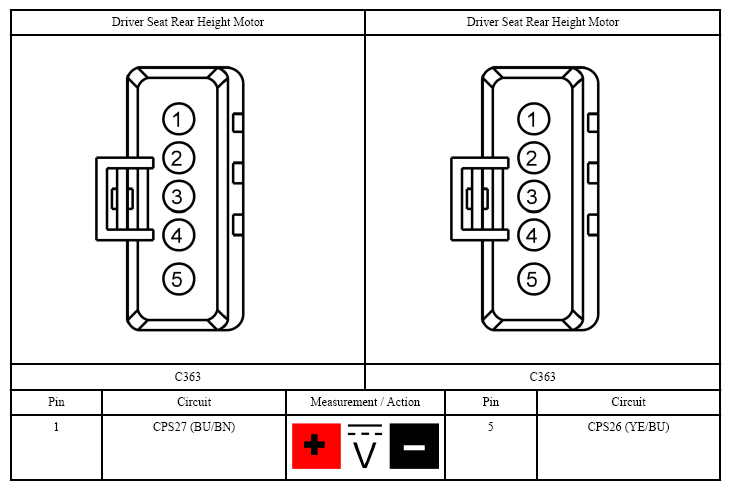

      Fig 3: Measuring Driver Seat Rear Height Motor Connector Terminal Identification
      G07427737Courtesy of FORD MOTOR CO.
    4. While pressing the rear height adjust switch up and down, measure:
      • Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?
      1. Yes:  INSTALL a new seat track assembly. REFER to SEAT TRACK . GO to 9  on page 7.
      2. No:  GO to 6  on page 4.
  6. CHECK THE REAR HEIGHT MOTOR CIRCUIT FOR AN OPEN
    1. Disconnect: Driver Seat Control Switch C360.
    2. Measure:

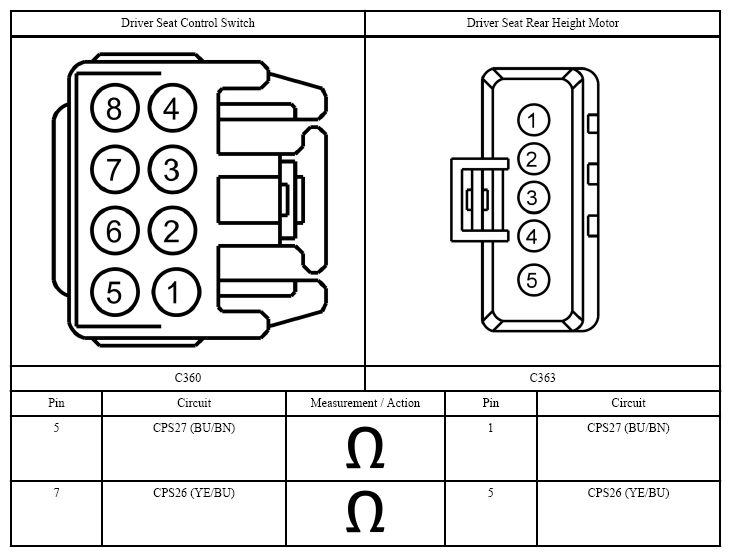

      Fig 4: Measuring Driver Seat Control Switch Connector And Driver Seat Rear Height Motor Connector Terminal Identification
      G07427738Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      1. Yes:  INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH . GO to 9  on page 7.
      2. No:  REPAIR the affected circuit. GO to 9  on page 7.
  7. CHECK FOR VOLTAGE TO THE DRIVER SEAT FRONT HEIGHT MOTOR
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Disconnect: Driver Seat Side Air Bag C3051.
    3. Disconnect: Driver Seat Front Height Motor C382.
      4. NOTE: During the following step, the voltage being measured changes polarity dependent upon which direction the seat control switch is activated.

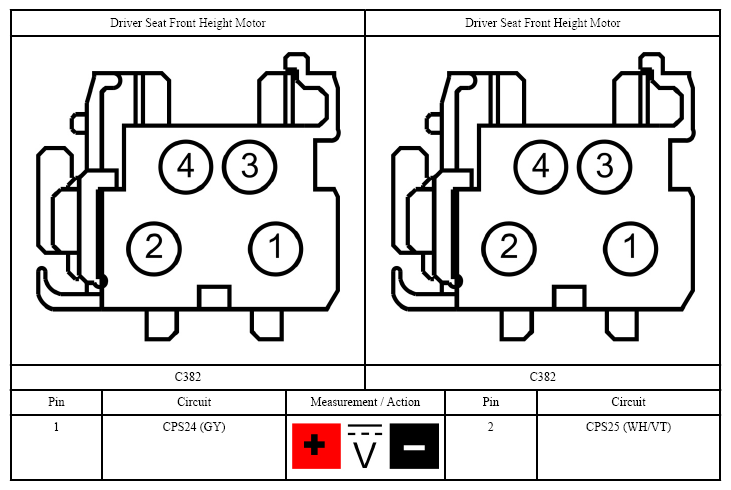

      Fig 5: Measuring Driver Seat Front Height Motor Connector Reference Chart
      G07427739Courtesy of FORD MOTOR CO.
    4. While pressing the front height adjust switch up and down, measure:
      • Is the voltage greater than 11 volts when the seat control switch is operated and 0 volt in the rest position?
      1. Yes:  INSTALL a new seat track assembly. REFER to SEAT TRACK . GO to 9  on page 7.
      2. No:  GO to 8  on page 6.
  8. CHECK THE FRONT HEIGHT MOTOR CIRCUIT FOR AN OPEN
    1. Disconnect: Driver Seat Control Switch C360.
    2. Measure:

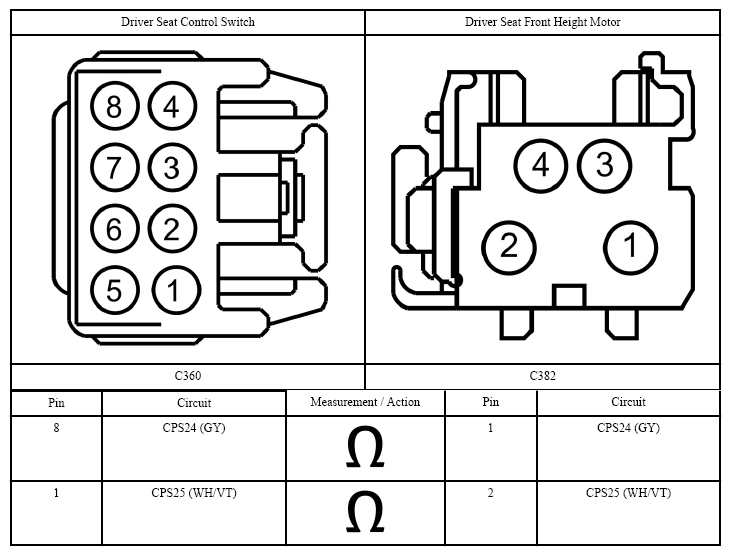

      Fig 6: Measuring Driver Seat Control Switch Connector And Driver Seat Front Height Motor Connector Terminal Identification
      G07427740Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      1. Yes:  INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH . GO to 9  on page 7.
      2. No:  REPAIR the circuit. GO to 9  on page 7.
  9. CHECK FOR Supplemental Restraint System (SRS) Diagnostic Trouble Codes (DTCs)
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Connect: Driver Seat Side Air Bag C3051.
    3. Connect: Driver Seat Control Switch C360.
    4. Connect: Driver Seat Horizontal Motor C362 (if previously disconnected).
    5. Connect: Driver Seat Rear Height Motor C363 (if previously disconnected).
    6. Connect: Driver Seat Front Height Motor C382 (if previously disconnected).
    7. Ignition ON.
    8. Using a scan tool, clear the Restraints Control Module (RCM) Diagnostic Trouble Codes (DTCs).
    9. Cycle the ignition OFF then ON.
    10. Using a scan tool, perform Restraints Control Module (RCM) self-test.
      • Are any Restraints Control Module (RCM) Diagnostic Trouble Codes (DTCs) retrieved during self-test?
      1. Yes:  REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
      2. No:  The repair is complete. RETURN the vehicle to the customer.
