Pinpoint Test

NOTE: When taking measurements at Dual Climate Controlled Seat Module (DCSM) harness connectors, do not insert the electrical probes into the female connector pins. Inserting the probes into connector pins can cause intermittent or open electrical connections after reassembly resulting in Diagnostic Trouble Codes (DTCs) and system failure. Touching the tip of these connector pins is recommended instead.
  1. CHECK THE Dual Climate Controlled Seat Module (DCSM) FOR Diagnostic Trouble Code (DTC)
    1. Using a scan tool, perform Dual Climate Controlled Seat Module (DCSM) Self-Test.
      • Was Diagnostic Trouble Code (DTC) B272B retrieved during the self-test?
      1. Yes:  GO to 2  on page 2.
      2. No:  GO to 4  on page 4.
  2. CHECK THE Thermo-Electric Device (TED) THERMISTOR CIRCUITS FOR A SHORT TO GROUND
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Disconnect: Dual Climate Controlled Seat Module (DCSM) C3265B.
    4. Disconnect: Passenger Backrest Thermo-Electric Device (TED) C3039.
    5. Measure:

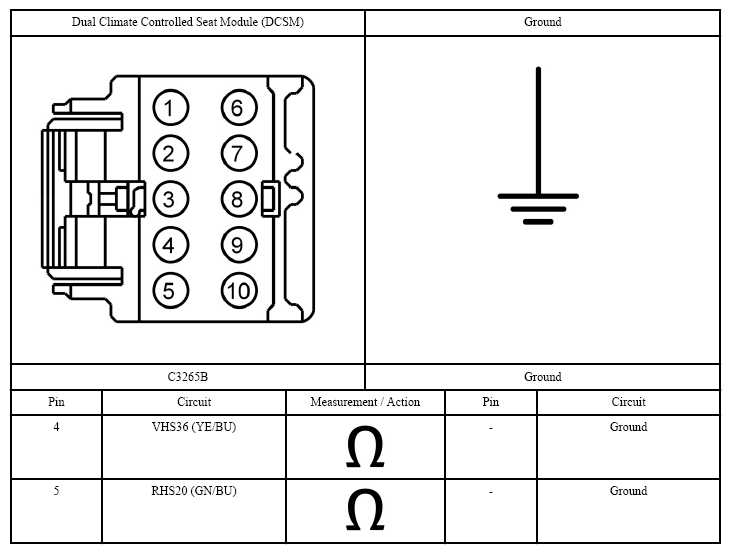

      Fig 1: Measuring Dual Climate Controlled Seat Module Connector Terminal Identification
      G07427647Courtesy of FORD MOTOR CO.
      • Are the resistances greater than 10,000 ohms?
      1. Yes:  GO to 3  on page 3.
      2. No:  REPAIR the affected circuit. GO to 16  on page 10.
  3. CHECK THE Thermo-Electric Device (TED) THERMISTOR
    1. Measure:
      Fig 2: Measuring Passenger Backrest Thermo-Electric Device Connector Terminal Identification
      G07427648Courtesy of FORD MOTOR CO.
      AMBIENT TEMPERATURE AND RESISTANCE REFERENCE CHART

      Ambient Temperature Resistance
      0 C (32 F) to 10 C (50 F) 2,782 to 1,663 ohms
      10 C (50 F) to 20 C (68 F) 1,837 to 1,140 ohms
      20 C (68 F) to 30 C (86 F) 1,250 to 806 ohms
      30 C (86 F) to 40 C (103.9 F) 893 to 570 ohms
      40 C (103.9 F) to 50 C (121.9 F) 630 to 428 ohms
      • Is the resistance within the limits indicated?
      1. Yes:  REPAIR the affected circuit. GO to 16  on page 10.
      2. No:  INSTALL a new seat backrest Thermo-Electric Device (TED). REFER to SEAT BACKREST THERMO-ELECTRIC DEVICE (TED) . GO to 16  on page 10.
  4. CONFIRM THE FAULT
    1. Verify with the customer that the concern is the seat shuts OFF in heat mode.
      2. NOTE: A crushed seat cushion foam pad or climate controlled seat manifold may be the cause of the fault. It may be necessary to sit on the seat or place something of reasonable size and weight on the seat to recreate the fault.
    2. Attempt to recreate the fault. Start the vehicle and set the passenger seat to HIGH heat for at least 15 minutes.
      • Is the customer concern with the seat shutting OFF in heat mode and was the fault recreated?
      1. Yes:  GO to 5  on page 4.
      2. No:  The fault is not present. The fault may have been set due to a past failure or incorrect use of the climate controlled seat system by repeated switching between heat and cool modes.
  5. CHECK OPERATION OF THE SEAT
    1. Ignition ON.
    2. With the engine running, set both front seats to HIGH cool.
    3. Compare the air flow from the front passenger seat backrest and compare it to the air flow from the driver seat backrest.
      • Is the air flow exhausting from the front passenger seat backrest comparable to the air flow exhausting from the driver seat backrest?
      1. Yes:  GO to 14  on page 9.
      2. No:  GO to 6  on page 4.
  6. CHECK THE BACKREST BLOWER FOR AN OBSTRUCTION OR RESTRICTED FILTER
    1. Ignition OFF.
    2. Inspect the blower of the backrest Thermo-Electric Device (TED) assembly for an obstruction or for a restricted filter.
      • Is the blower obstructed or the filter restricted?
      1. Yes:  REMOVE the obstruction or INSTALL a new filter.
      2. No:  GO to 7  on page 4.
  7. CHECK THE BACKREST FAN OPERATION
    1. Ignition ON.
    2. With the engine running, set both front seats to HIGH cool.
    3. Inspect the backrest blower for operation.
      • Does the backrest blower operate?
      1. Yes:  GO to 14  on page 9.
      2. No:  GO to 8  on page 5.
  8. CHECK THE BLOWER SPEED CONTROL CIRCUIT FOR AN OPEN
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Disconnect: Passenger Seat Side Air Bag C339.
    3. Disconnect: Dual Climate Controlled Seat Module (DCSM) C3265C.
    4. Disconnect: Passenger Backrest Thermo-Electric Device (TED) C3039.
    5. Measure:

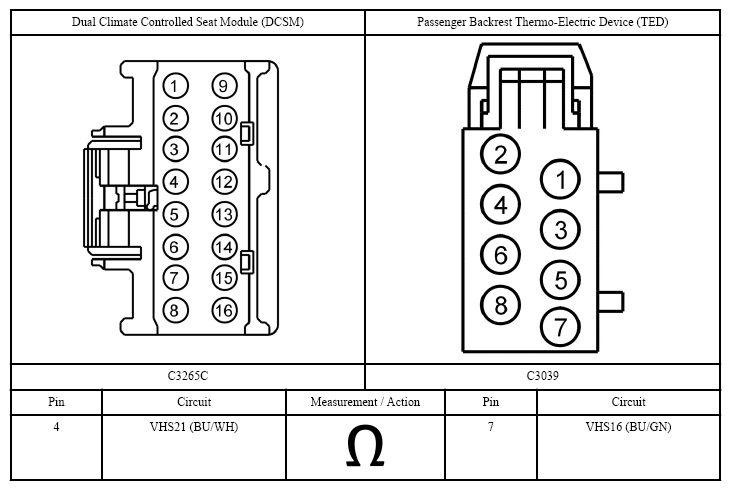

      Fig 3: Measuring Dual Climate Controlled Seat Module Connector And Passenger Backrest Thermo-Electric Device Connector Terminal Identification
      G07427649Courtesy of FORD MOTOR CO.
      • Is the resistance less than 3 ohms?
      1. Yes:  GO to 9  on page 5.
      2. No:  REPAIR the circuit. GO to 16  on page 10.
  9. CHECK THE BLOWER CIRCUIT FOR A SHORT TO VOLTAGE
    1. Ignition ON.
    2. Measure:

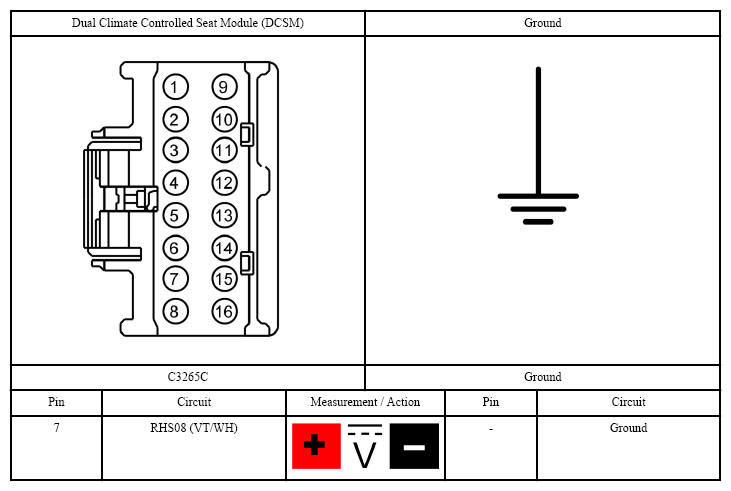

      Fig 4: Measuring Dual Climate Controlled Seat Module Connector Terminal Identification
      G07427650Courtesy of FORD MOTOR CO.
      • Is any voltage present?
      1. Yes:  REPAIR the circuit. GO to 16  on page 10.
      2. No:  GO to 10  on page 6.
  10. CHECK THE BLOWER CIRCUIT FOR A SHORT TO GROUND
    1. Ignition OFF.
    2. Measure:

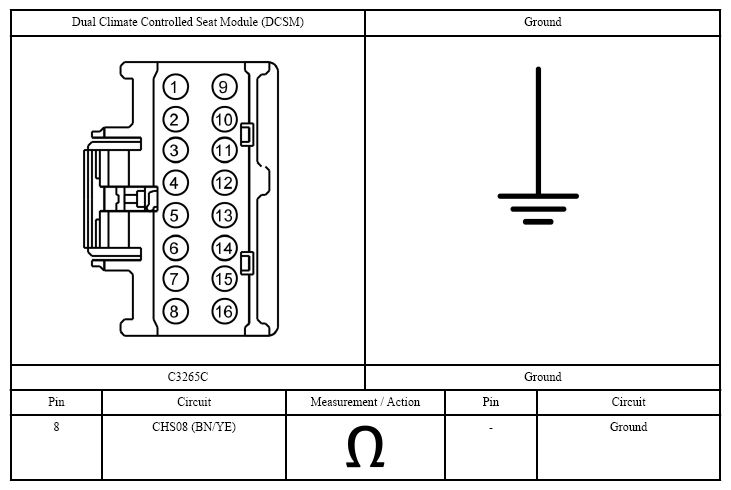

      Fig 5: Measuring Dual Climate Controlled Seat Module Connector Terminal Identification
      G07427651Courtesy of FORD MOTOR CO.
      • Is the resistance greater than 10,000 ohms?
      1. Yes:  GO to 11  on page 7.
      2. No:  REPAIR the circuit. GO to 16  on page 10.
  11. CHECK THE BLOWER CIRCUITS FOR AN OPEN
    1. Measure:

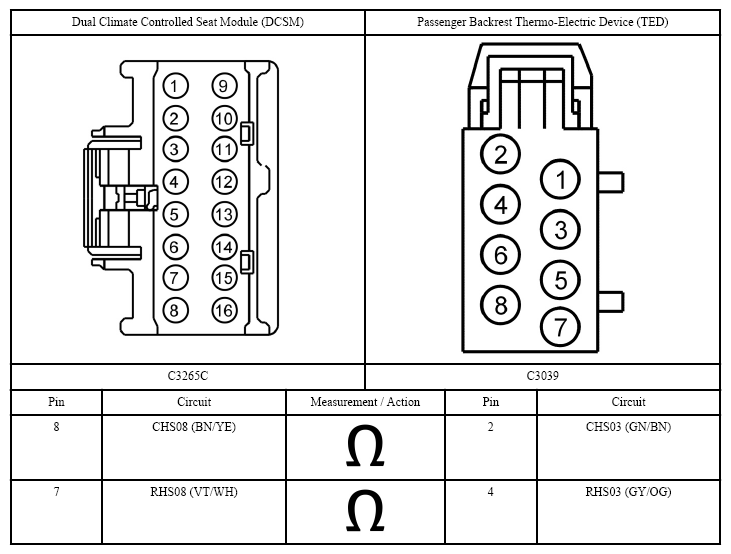

      Fig 6: Measuring Dual Climate Controlled Seat Module Connector And Passenger Backrest Thermo-Electric Device Connector Terminal Identification
      G07427652Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      1. Yes:  GO to 12  on page 7.
      2. No:  REPAIR the affected circuit. GO to 16  on page 10.
  12. CHECK THE BLOWER RESISTANCE
      NOTE: Connect the ohmmeter with the positive lead to pin 2 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.

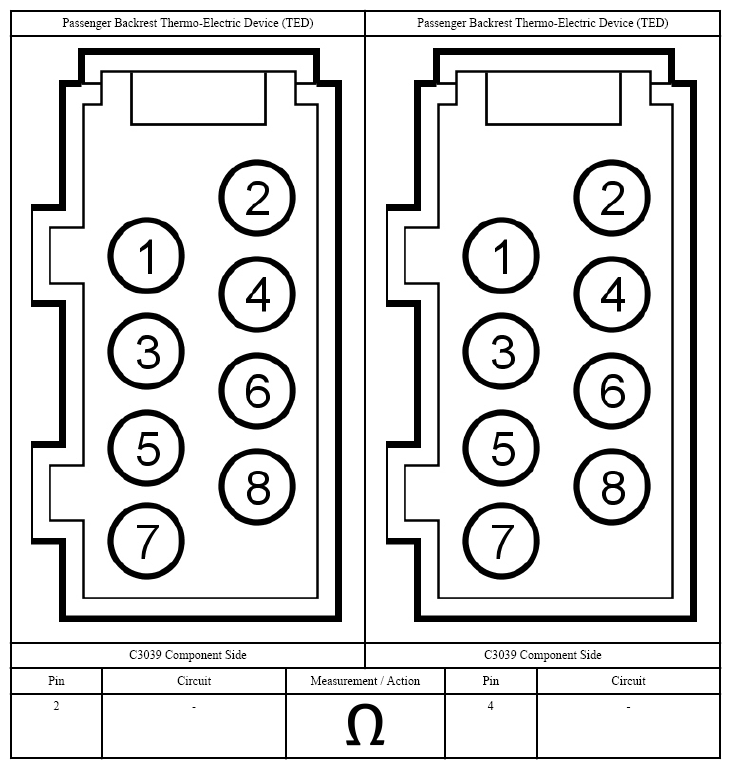

      Fig 7: Measuring Passenger Backrest Thermo-Electric Device Connector Terminal Identification
      G07427653Courtesy of FORD MOTOR CO.
    1. Measure:
      • Is the resistance between 4,000 ohms and 10,000 ohms?
      1. Yes:  GO to 13  on page 8.
      2. No:  INSTALL a new seat cushion Thermo-Electric Device (TED). REFER to SEAT CUSHION THERMO-ELECTRIC DEVICE (TED) . GO to 16  on page 10.
  13. CHECK THE BLOWER SPEED CONTROL RESISTANCE
      NOTE: Connect the ohmmeter with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected can result in false readings and lead to incorrect identification of components that are not damaged.
      Fig 8: Measuring Passenger Backrest Thermo-Electric Device Connector Terminal Identification
      G07427654Courtesy of FORD MOTOR CO.
    1. Measure:
      • Is the resistance between 240,000 ohms and 420,000 ohms?
      1. Yes:  GO to 14  on page 9.
      2. No:  INSTALL a new seat backrest Thermo-Electric Device (TED). REFER to SEAT BACKREST THERMO-ELECTRIC DEVICE (TED) . GO to 16  on page 10.
  14. CHECK THE Thermo-Electric Device (TED) INSTALLATION AND FOR CRUSHED SEAT BACKREST
    1. Ignition OFF.
    2. Remove the seat. REFER to SEAT .
    3. Remove the seat backrest cover. REFER to SEAT BACKREST COVER .
    4. Inspect the seat backrest.
      • Is the Thermo-Electric Device (TED) correctly installed?
      • Is the seat cushion foam pad crushed or restricted?
      • Is the climate controlled seat manifold crushed or restricted?
      • Is the Thermo-Electric Device (TED) correctly installed and are there no signs of damage to the foam pad and manifold?
      1. Yes:  GO to 15  on page 10.
      2. No:  Correctly INSTALL the backrest Thermo-Electric Device (TED) or INSTALL a new seat backrest foam pad and/or climate controlled seat manifold. GO to 16  on page 10.
  15. CHECK FOR CORRECT Dual Climate Controlled Seat Module (DCSM) OPERATION
    1. Ignition OFF.
    2. Disconnect and inspect all Dual Climate Controlled Seat Module (DCSM) connectors.
    3. Repair:
      • corrosion (install new connector or terminals - clean module pins)
      • damaged or bent pins - install new terminals/pins as necessary
      • pushed-out pins - install new pins as necessary
    4. Reconnect the Dual Climate Controlled Seat Module (DCSM) connectors. Make sure they seat and latch correctly.
    5. Connect: Passenger Backrest Thermo-Electric Device (TED) C3039.
    6. Operate the system and determine if the concern is still present.
      • Is the concern still present?
      1. Yes:  CHECK On-Line Automotive Service Information System (OASIS) for any applicable Technical Service Bulletins (TSBs). If a Technical Service Bulletin (TSB) exists for this concern, DISCONTINUE this test and FOLLOW Technical Service Bulletin (TSB) instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new Dual Climate Controlled Seat Module (DCSM). REFER to DUAL CLIMATE CONTROLLED SEAT MODULE (DCSM) . GO to 16  on page 10.
      2. No:  The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to 16  on page 10.
  16. CHECK FOR Supplemental Restraint System (SRS) Diagnostic Trouble Codes (DTCs)
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    1. Ignition OFF.
    2. Connect: Passenger Seat Side Air Bag C339.
    3. Connect: Dual Climate Controlled Seat Module (DCSM) C3265B and C3265C (if previously disconnected).
    4. Connect: Passenger Backrest Thermo-Electric Device (TED) C3039 (if previously disconnected).
    5. Ignition ON.
    6. Using a scan tool, clear the Restraints Control Module (RCM) Diagnostic Trouble Codes (DTCs).
    7. Cycle the ignition OFF then ON.
    8. Using a scan tool, perform Restraints Control Module (RCM) self-test.
      • Are any Restraints Control Module (RCM) Diagnostic Trouble Codes (DTCs) retrieved during self-test?
      1. Yes:  REFER to DTC CHART: RESTRAINT CONTROL MODULE (RCM) for pinpoint test direction.
      2. No:  The repair is complete. RETURN the vehicle to the customer.
