Exploded View

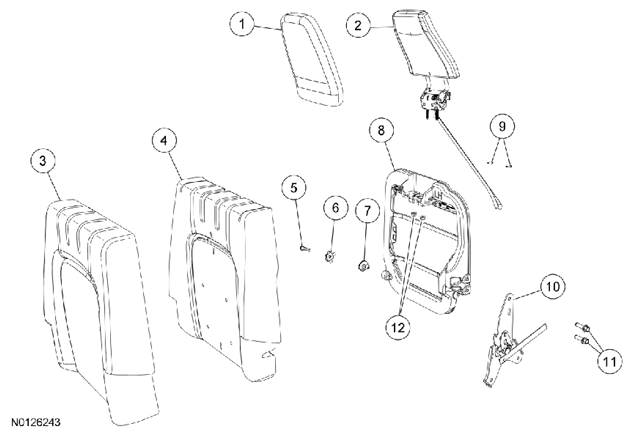

Figure 1: Backrest, Manual

NOTE: Left Hand (LH) shown Right Hand (RH) similar.

Fig 1: Exploded View Of Seat - Backrest, Manual

Courtesy of FORD MOTOR CO.

SEAT PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque
1	501A04	Head restraint cover	-
2	611A08	Head restraint assembly	-
3	66601	Backrest cover	-
4	66801	Backrest foam pad	-
5	W714465	Pivot bolt	54 Nm (40 lb-ft)
6	-	Felt tape	-
7	613B44	Bushing	-
8	613A39	Backrest frame	-
9	W505575	Head restraint bolts	5 Nm (44 lb-in)
10	613D61	Backrest latch, manual	-
11	W714278	Backrest latch-to-backrest frame bolts (2 required)	83 Nm (61 lb-ft)
12	W520112	Head restraint-to-backrest frame nuts	24 Nm (18 lb-ft)

Figure 2: Backrest, Power

NOTE: Left Hand (LH) shown Right Hand (RH) similar.

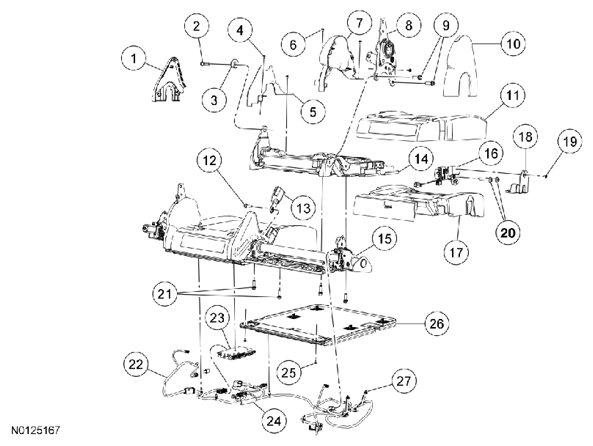

Fig 2: Exploded View Of Seat - Backrest, Power

Courtesy of FORD MOTOR CO.

SEAT PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque
1	501A04	Head restraint cover	-
2	611A08	Head restraint assembly	-
3	66601	Backrest cover	-
4	66801	backrest foam pad	-
5	613A39	Backrest frame	-
6	W505575	Head restraint bolts	5 Nm (44 lb-in)
7	W715018	Cable retainer	-
8	W714465	Pivot bolt	54 Nm (40 lb-ft)
9	613B44	Bushing	-
10	W714278	Backrest latch-to-backrest frame bolts (2 required)	83 Nm (61 lb-ft)
11	613D61	Backrest latch, power	-
12	W520112	Head restraint-to-backrest frame nuts	24 Nm (18 lb-ft)

Figure 3: Cushion, Manual

NOTE: Left Hand (LH) shown Right Hand (RH) similar.

Fig 3: Exploded View Of Seat - Cushion, Manual

Courtesy of FORD MOTOR CO.

SEAT PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque
1	63805	Cushion cover	-
2	63841	Cushion foam pad	-
3	W714278	Backrest latch-to-backrest frame bolts	83 Nm (61 lb-ft)
4	613D61	Backrest latch, manual	-
5	56910	Screw	-
6	67460	Backrest latch inboard cover	-
7	56910	Screw (2 required)	-
8	613D48	Safety belt buckle	-
9	W707957	Safety belt buckle bolt (part of 613D48)	40 Nm (30 lb-ft)
10	W714278	Backrest latch-to-cushion frame bolts (2 required)	60 Nm (44 lb-ft)
11	W711849	Floor latch bolts (2 required)	48 Nm (35 lb-ft)
12	61143	Floor latch assembly, manual	-
13	56910	Screw (3 required)	-
14	67460	Inboard pivot cover	-
15	61349	Backrest latch outboard cover	-
16	56910	Screw	-
17	601L60	Pivot release cable	-
18	613B44	Bushing	-
19	638A75	Floor latch cover	-
20	613B90	Pivot tube assembly, manual	-
21	63160	Cushion frame	-
22	W714278	Pivot tube assembly bolts (4 required)	60 Nm (44 lb-ft)
23	W714465	Pivot bolt	55 Nm (41 lb-ft)
24	67460	Outboard pivot cover	-
25	W504694	Screw (2 required)	-
26	60513	Load floor panel	-
27	62432	Pivot release handle	-
28	W604694	Screw	-

Figure 4: Cushion, Power

NOTE: Right Hand (RH) shown Left Hand (LH) similar.

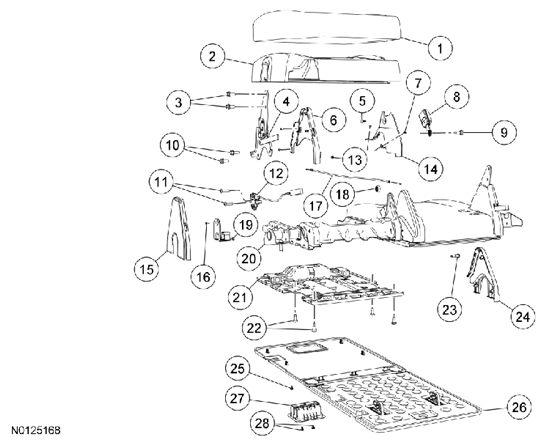

Fig 4: Exploded View Of Seat - Cushion, Power

Courtesy of FORD MOTOR CO.

SEAT PARTS DESCRIPTION CHART

Item	Service Part Number	Description	Torque
1	61348	Outboard pivot cover	-
2	W7144465	Pivot bolt	54 Nm (40 lb-ft)
3	613B44	Bushing	-
4	56910	Screw	-
5	61348	Inboard pivot cover	-
6	56910	Screw (3 required)	-
7	67460	Backrest latch inboard cover	-
8	613D60	Backrest latch, power	-
9	W714278	Backrest latch-to-cushion frame bolts (2 required)	60 Nm (44 lb-ft)
10	67460	Backrest latch inboard cover	-
11	63804	Cushion cover	-
12	W707957	Safety belt buckle bolt (part of 613D48)	40 Nm (30 lb-ft)
13	613D48	Safety belt buckle	-
14	63160	Cushion frame	-
15	613B90	Pivot tube assembly, power	-
16	61142	Floor latch assembly, power	-
17	63841	Cushion foam pad	-
18	638A74	Floor latch cover	-
19	56910	Screw	-
20	W711849	Floor latch bolts (2 required)	48 Nm (35 lb-ft)
21	W714278	Cushion frame-to-pivot tube assembly bolts (4 required)	60 Nm (44 lb-ft)
22	14B719	Left Hand (LH) seat wire harness	-
23	14F042	Power-Fold Seat Module (PFSM)	-
24	14B719	Seat wire harness	-
25	W504694	Screw (2 required)	-
26	60512	Load floor panel	-
27	14B720	Right Hand (RH) seat wire harness	-
