Occupant Classification System Module Connector End View (C3285)

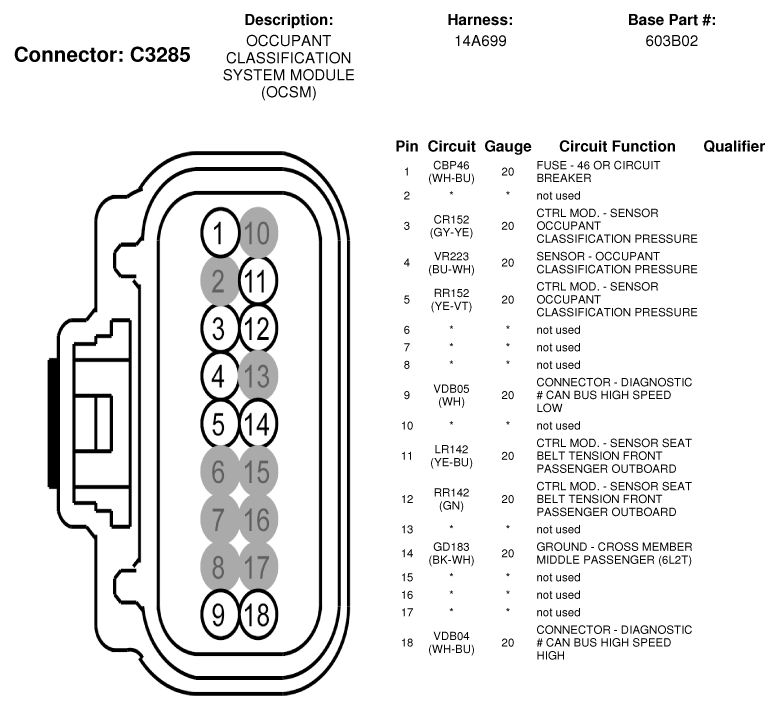

Fig 1: Occupant Classification System Module Connector End View (C3285)

G07334388

Courtesy of FORD MOTOR CO.
