Powertrain Control Module Connector End View (C175T)

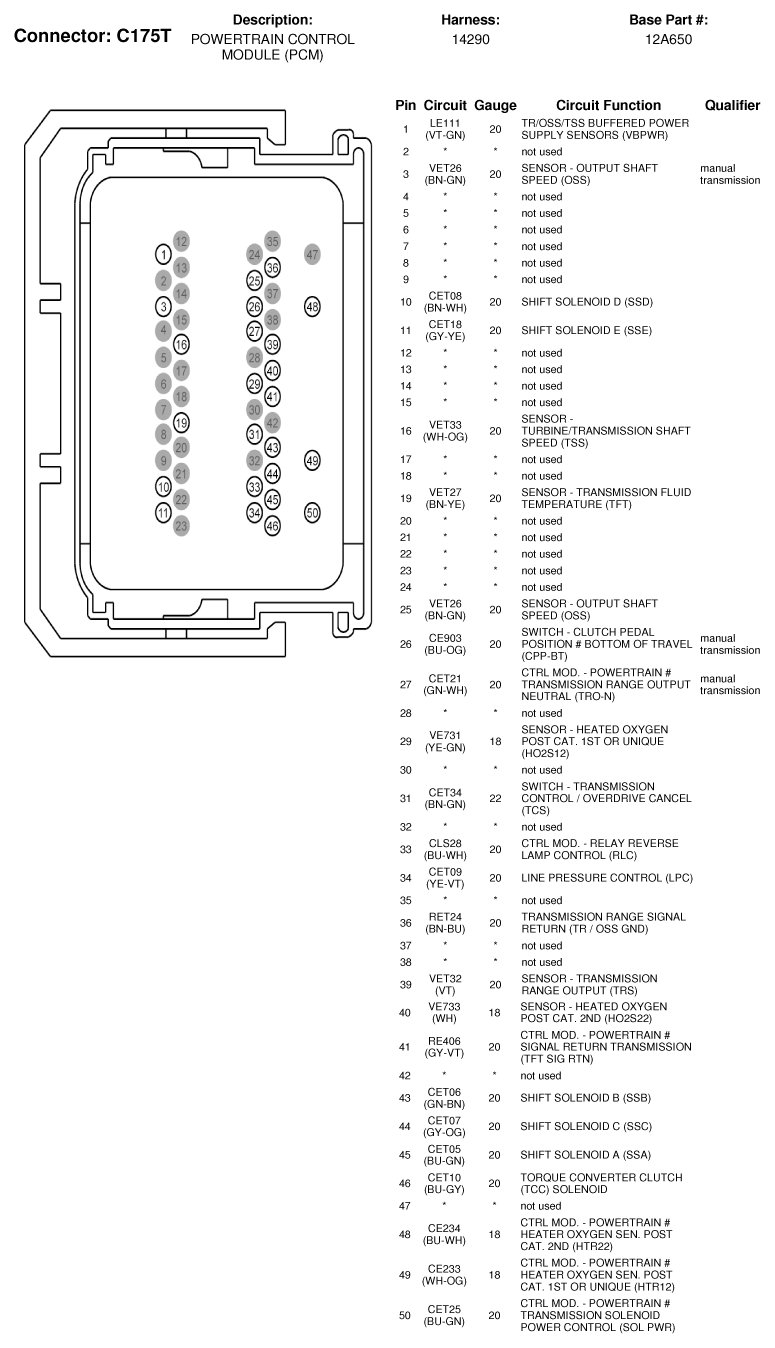

Fig 1: Powertrain Control Module Connector End View (C175T)

G07333879

Courtesy of FORD MOTOR CO.
