Front Display Interface Module Connector End View (C2123)

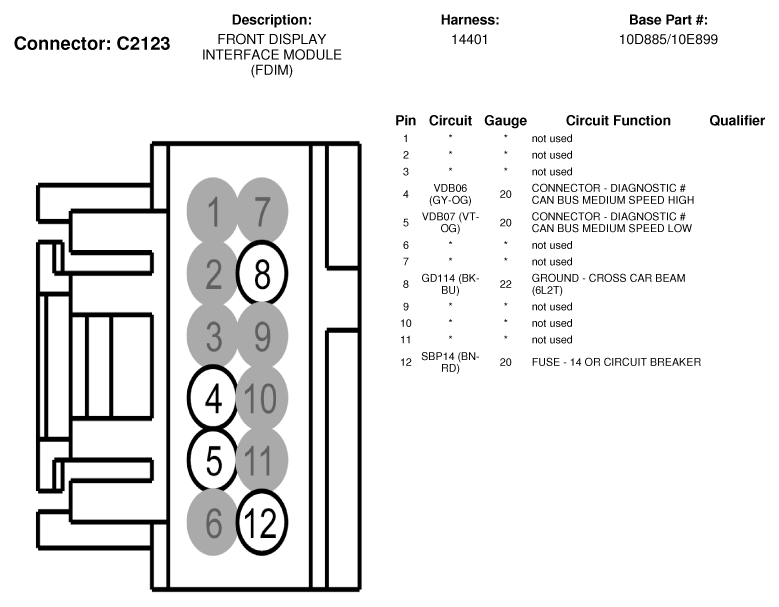

Fig 1: Front Display Interface Module Connector End View (C2123)

G07334052

Courtesy of FORD MOTOR CO.
