Passenger Side Climate Controlled Seat Backrest Module Connector - C3326

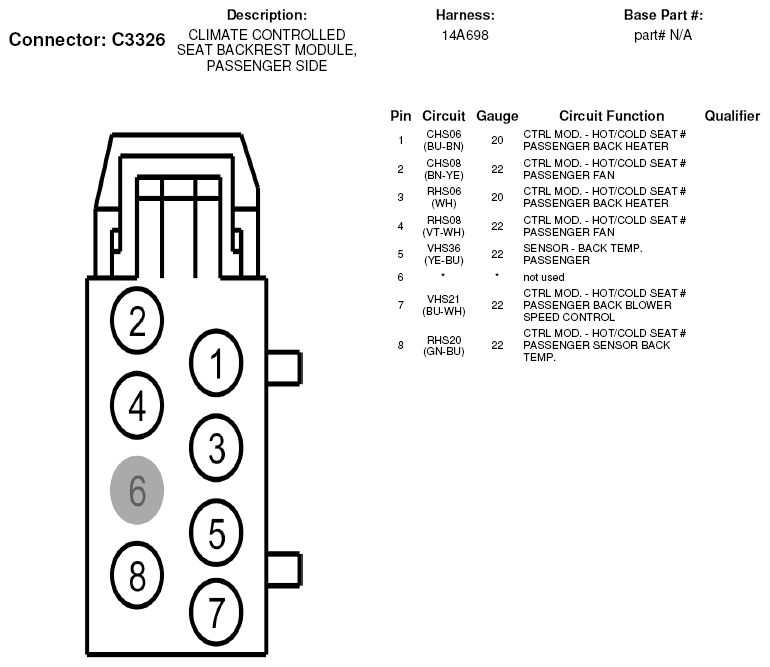

Fig 1: Passenger Side Climate Controlled Seat Backrest Module Connector End View (C3326)

G07327266

Courtesy of FORD MOTOR CO.
