Knock Sensor Connector - C109

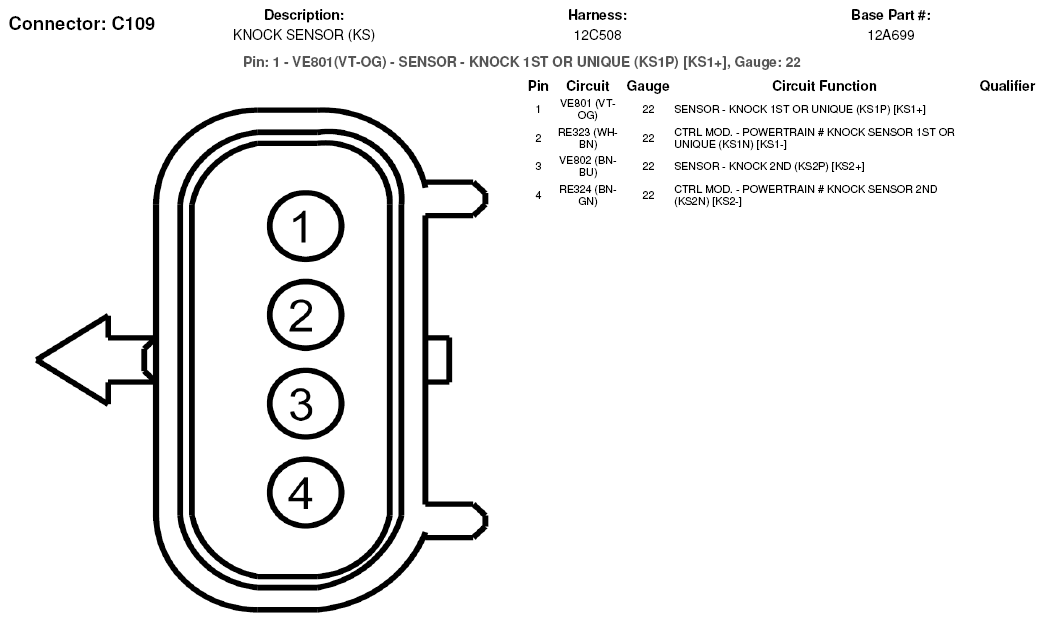

Fig 1: Knock Sensor Connector End View (C109)

G07326943

Courtesy of FORD MOTOR CO.
