Driver Side Climate Controlled Seat Cushion Module Connector - C3327

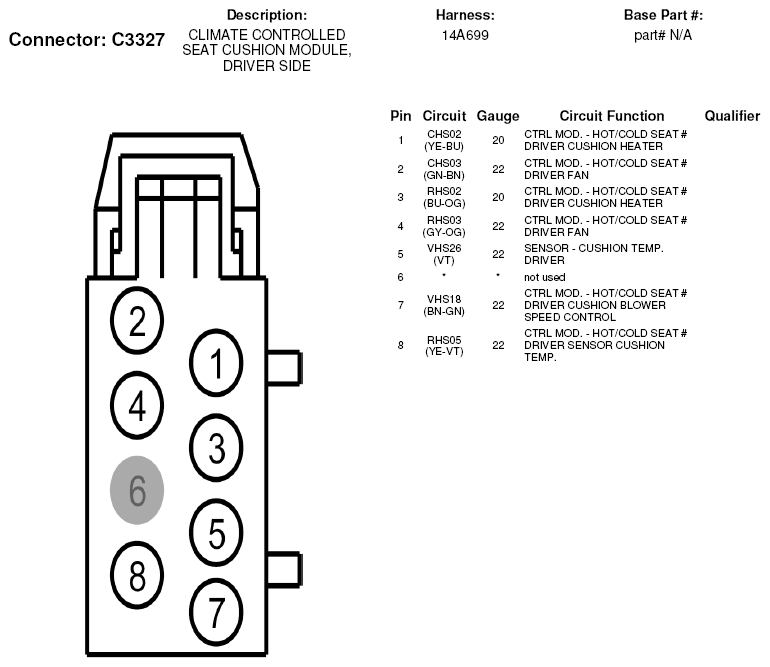

Fig 1: Driver Side Climate Controlled Seat Cushion Module Connector End View (C3327)

G07327267

Courtesy of FORD MOTOR CO.
