Heating Ventilation Air Conditioning (HVAC) Module: Notes

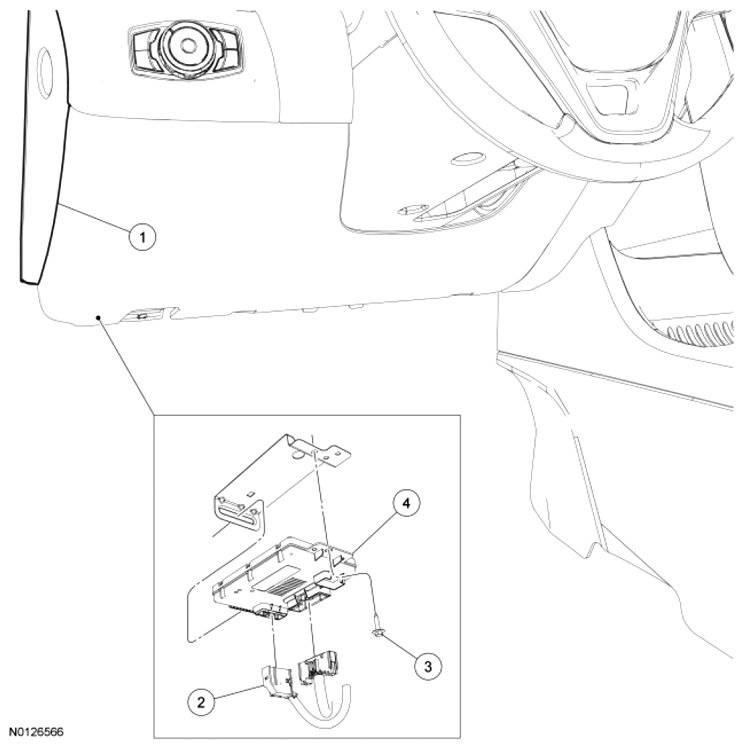

Fig 1: Identifying Heating Ventilation Air Conditioning (HVAC) Module Components
G07402373Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7804481 LH instrument panel side trim panel
2 - HVAC module electrical connector (2 required) (part of 14401)
3 W710506 HVAC module screw
4 19980 HVAC module
