Throttle Body: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

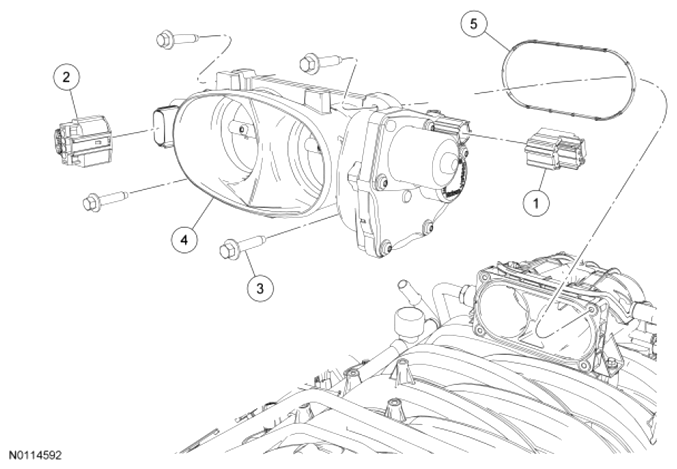

| Item |
Part Number |
Description |
| 1 |
- |
Electronic Throttle Control (ETC) electrical connector (part of 12C508) |
| 2 |
- |
Throttle Position (TP) sensor electrical connector (part of 12C508) |
| 3 |
W500215 |
Throttle Body (TB) bolt (4 required) |
| 4 |
9F991 |
TB |
| 5 |
9E936 |
TB gasket |
