Keyless Entry Keypad: Notes

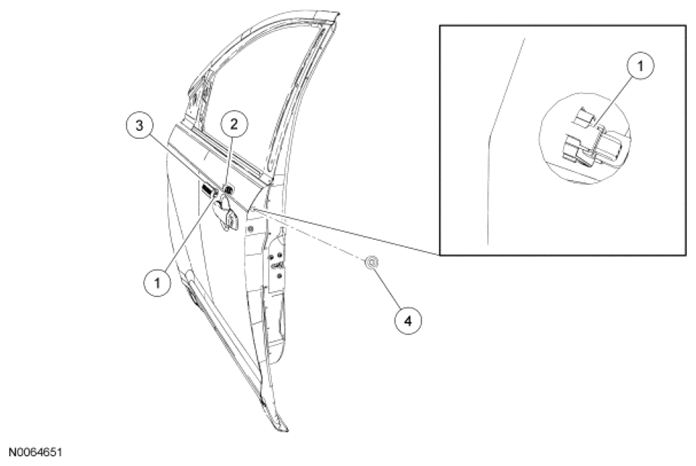

Fig 1: Identifying Keyless Entry Keypad Components Location
G06506069Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Keyless entry keypad retaining clips (2 required) (part of 14A626)
2 - Keyless entry keypad electrical connector (part of 14631)
3 14A626 Keyless entry keypad
4 W651011 Upper access plug
